RP-60-20/L
TDK Corporation

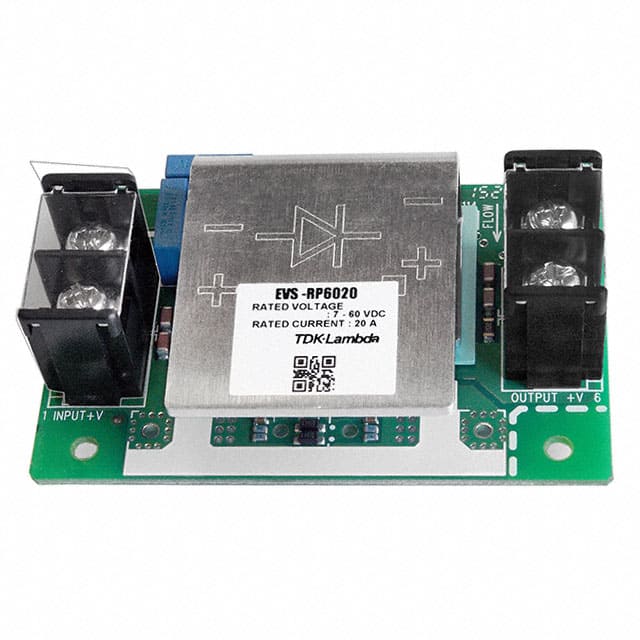

The TDK Corporation RP-60-20/L is a redundancy module designed for EVS power supplies. It offers reverse current protection with a maximum current rating of 20A.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Operating Temperature | |
| Storage Temperature |
The TDK Corporation RP-60-20 is a high-performance redundancy module designed to provide reverse current protection for EVS power systems. This module operates within an input voltage range of 7 to 60 VDC and can handle a maximum current of 20A.
Key electrical specifications include a low voltage drop of 0.2V and a maximum reverse current of 50µA. The module supports parallel operation of up to two units, although it does not feature a current sharing function. It is designed for convection or forced air cooling and has an operating temperature range of -20°C to +74°C, with derating applied at higher temperatures.
The RP-60-20 is available in two mechanical configurations: an open frame measuring 50 x 26 x 77.5 mm and weighing 60g, or an L bracket version measuring 60 x 32 x 93.5 mm and weighing 100g. This provides flexibility for integration into various system designs.
Compliance certifications include UL60950-1, CSA60950-1, EN60950-1, CE mark for LVD, and RoHS2. The module also features a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The input voltage range is 7 to 60 VDC.
The maximum current rating is 20A.
The typical voltage drop is 0.2 VDC.
The operating temperature range is -20°C to +74°C for both convection and forced air cooling, with derating at higher temperatures.
The open frame dimensions are 50 x 26 x 77.5 mm.
The RP-60-20 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
