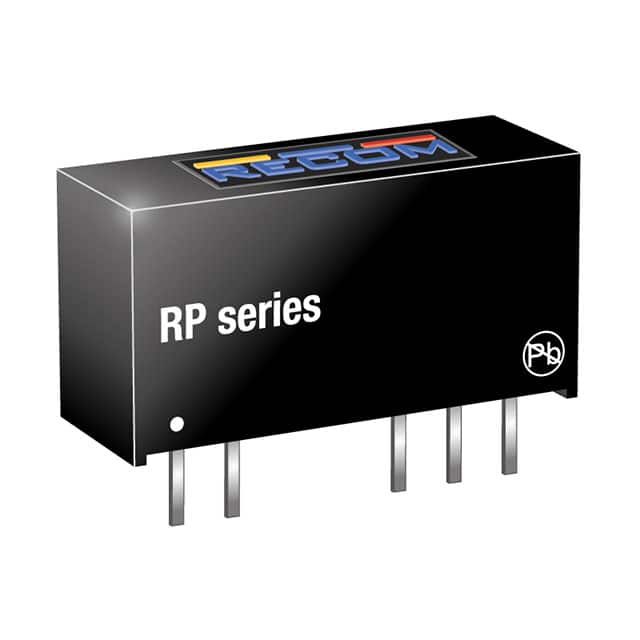

The Recom Power RP-0505S/P/X2 is a 1-watt isolated DC-DC converter from the RP series, designed to deliver a stable 5V output at 200mA from a nominal 5V input. This unregulated converter features a high isolation voltage of 5.2kVDC (tested for 1 second), making it suitable for applications requiring robust galvanic isolation such as IGBT driver circuits.
Key electrical specifications include a typical efficiency of 72% at full load and a switching frequency range of 50kHz to 120kHz. The module can operate over a wide temperature range from -40°C to +85°C and is capable of driving capacitive loads up to 1000µF. It includes short-circuit protection (SCP) as a standard feature (suffix /P).
The converter is housed in a compact 19.7mm x 7.1mm x 10.2mm 7-SIP module with 4 leads and is through-hole mounted. The /X2 suffix indicates an alternative pin arrangement that provides increased input-to-output creepage distance of more than 9mm. The part is certified to UL60950-1, CSA C22.2 No. 60950-1-07, and IEC/EN60950-1, and is compliant with RoHS 2+ and REACH.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.49 | $18.49 |
| 5+ | $17.49 | $17.49 |
| 10+ | $16.93 | $16.93 |
| 25+ | $16.48 | $16.48 |
| 50+ | $16.09 | $16.09 |
| 100+ | $15.11 | $15.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output is 5V at 200mA maximum, providing 1W of power.
The isolation voltage is 5.2kVDC, tested for 1 second.
The input voltage range is 4.5V to 5.5V, with a nominal input of 5V.
It is a 7-SIP module with 4 leads, through-hole mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS 2+ compliant as declared in the datasheet.
Yes, the /P suffix indicates continuous short circuit protection.
