| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Insulation Resistance | |
| Lead Diameter | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Overload Voltage | |
| Power (Watts) | |
| Resistance | |
| Resistor Type | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

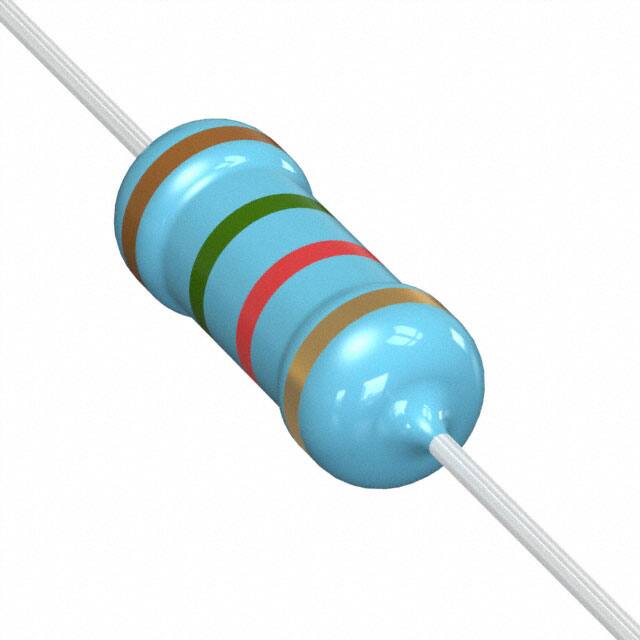

The TE Connectivity ROX2SJ1K5 is a 2W power resistor from the ROX2S series, utilizing metal oxide film technology. It offers a resistance value of 1.5 kΩ with a tolerance of ±5% and a temperature coefficient of ±300 ppm/°C.
This resistor is designed for high power applications and features a compact, space-saving size. It is suitable for line protection and can withstand overload conditions. The component has a limiting element voltage of 350V and an overload voltage of up to 600V.
With excellent long-term stability and a solvent-resistant coating, the ROX2SJ1K5 ensures reliability. It is compatible with automatic insertion equipment. The axial package measures 5mm in diameter and 12mm in length, with a lead diameter of 0.70mm.
Key electrical specifications include an insulation resistance of 1000MΩ. The operating temperature range is from -55°C to 235°C. This resistor is also noted for being flame proof and having high surge/overload capacity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ROX2SJ1K5 resistor has a resistance value of 1.5 kΩ.
The ROX2SJ1K5 resistor has a power rating of 2W at 70°C.
The tolerance of the ROX2SJ1K5 resistor is ±5%.
The temperature coefficient of the ROX2SJ1K5 resistor is ±300 ppm/°C.
The operating temperature range for the ROX2SJ1K5 resistor is -55°C to 235°C.
The ROX2SJ1K5 resistor is supplied in an axial package, with a standard package quantity of 1000 units.
