| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
614 pcs
|
614 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Industrial Grade | |
| Military Grade | |
| Number of Terminations | |
| Operating Temperature | |
| Power Rating | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance |

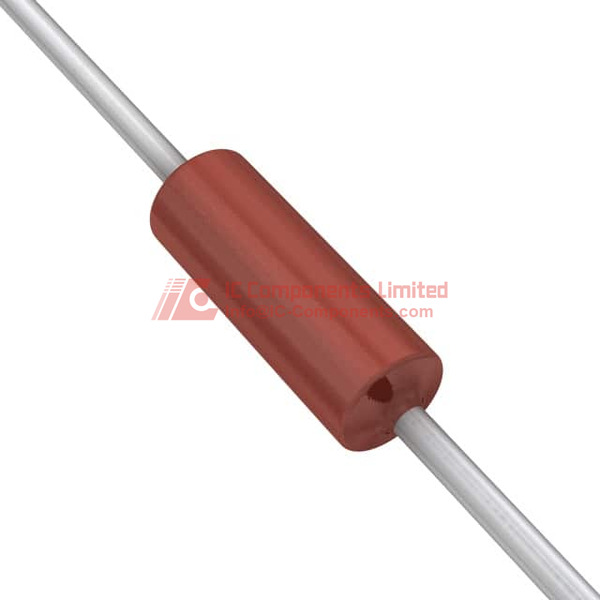

The RN55D2262FRSL from Vishay Dale is a high-quality metal film resistor designed for through-hole mounting. It features a resistance value of 22.6 kOhms with a tight tolerance of ±1%, making it suitable for applications requiring precise resistance values.
With a power rating of 0.125W (1/8W), this resistor operates effectively within a wide temperature range of -65°C to 175°C. Its axial package and dimensions of 0.090" Dia x 0.240" L (2.29mm x 6.10mm) facilitate easy integration into various electronic circuits. The series designation, Military, MIL-R-10509/7, RN55, indicates its suitability for demanding applications.
Key features include a metal film composition, a temperature coefficient of ±100ppm/°C, and a flame retardant coating. It also offers moisture resistance and safety features, aligning with military standards. The component has 2 terminations and is available in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22.6 kOhms.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -65°C to 175°C.
The dimensions are 0.090" Dia x 0.240" L (2.29mm x 6.10mm).
The composition is Metal Film.
It belongs to the Military, MIL-R-10509/7, RN55 series.
