RN4020-V/RM123
Microchip Technology
The Microchip Technology RN4020-V/RM123 is an RF Transceiver Module supporting Bluetooth v4.1. It operates at 2.4GHz with a data rate of 1Mbps.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,600 pcs
|
2600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

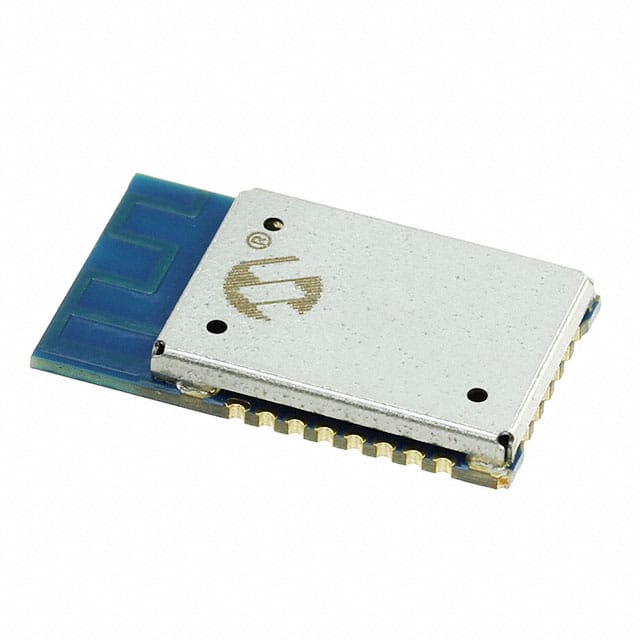

The Microchip Technology RN4020-V/RMBEC133 is an RF transceiver module designed for Bluetooth v4.1 communication. It operates in the 2.4GHz frequency band, offering a data rate of 1Mbps and a transmit power of 7.5dBm.
This module features a sensitivity of -92.5dBm and supports a wide operating voltage range of 1.8V to 3.6V, consuming approximately 16mA of current. It includes integrated trace antenna and supports serial interfaces such as AIO, PIO, SPI, and UART.
The RN4020-V/RMBEC133 is suitable for applications requiring wireless connectivity. It is housed in a module package and designed for surface mount installation.
Key specifications include a memory size of 64kB Flash and an operating temperature range of -30°C to 85°C. The module utilizes GFSK modulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
The data rate is 1Mbps.
The sensitivity is -92.5dBm.
The operating temperature range is -30°C to 85°C.
It features an integrated trace antenna.
