| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
766 pcs
|
766 pcs | On Request | 1 | On Request | On Request | 1809+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Voltage |

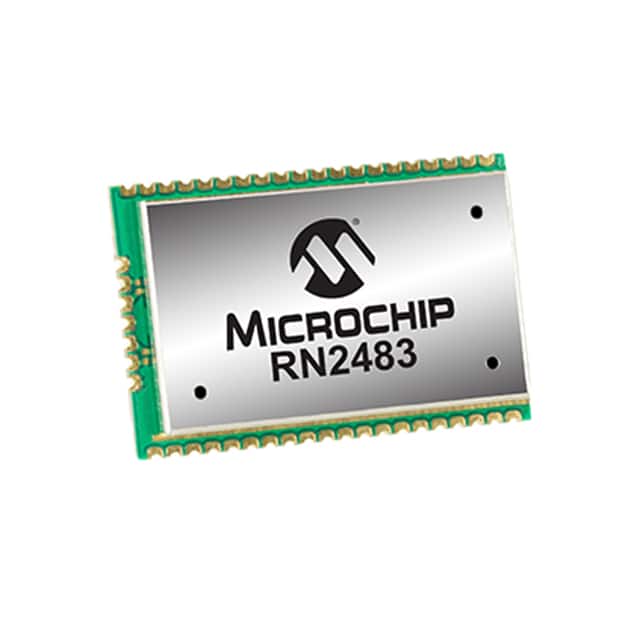

The Microchip Technology RN2483A-I/RM103 is an RF transceiver module designed for General ISM < 1GHz applications. It utilizes the LoRa protocol for long-range communication, operating at frequencies of 433MHz and 868MHz. This module supports data rates up to 300kbps and offers a sensitivity of -146dBm, making it suitable for low-power, long-range IoT applications.
With a transmit power of 14dBm and an operating current of 14mA, the RN2483A-I/RM103 is designed for efficiency. It features multiple serial interfaces including I²C, SPI, and UART, providing flexibility in system integration. The module operates within a voltage range of 2.1V to 3.6V and an extended temperature range of -40°C to 85°C.
The module is provided in a surface mount package with castellation, and requires an external antenna. Its compact form factor and robust specifications make it a versatile choice for various wireless communication designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.1V to 3.6V.
The operating temperature range is -40°C to 85°C.
The module uses the LoRa™ protocol.
The module operates at 433MHz and 868MHz.
The data rate is 300kbps.
The sensitivity is -146dBm.
