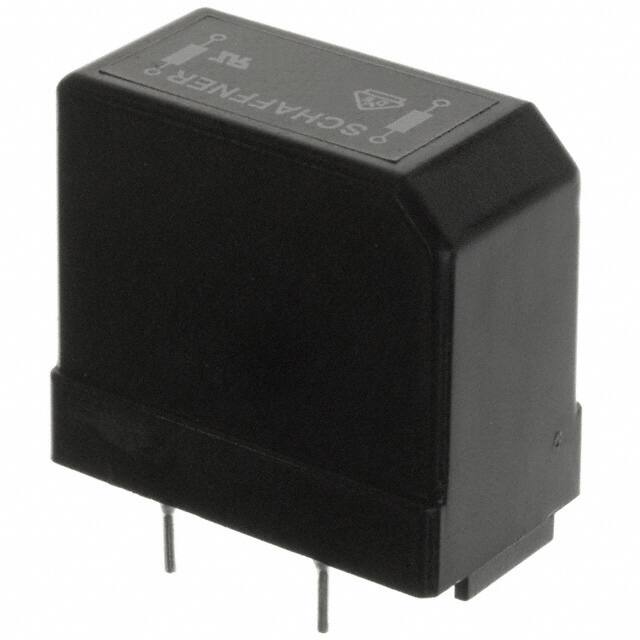

The Schaffner RN242-1-02-33M is a current-compensated common mode choke from the RN series. It is designed to attenuate common-mode or asymmetric interference signals in AC power lines.
Key electrical specifications include an operating voltage of 300 VAC, a rated current of 1A, and a rated inductance of 33 mH at 10 kHz. The choke also has a DC resistance of 810 mOhm (typical) and a surge current capability of 20 x IN for 10 msec.
This component operates within a temperature range of -40°C to 100°C and features a through-hole mounting type with a vertical, 4 PC pin package. The housing and potting compound are rated UL 94V-0 for flammability.
Typical applications include switch-mode power supplies, EMI input filters, and phase-angle control circuits. It is designed in accordance with UL 1283 and IEC/EN 60938-1 standards.
