| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
806 pcs
|
806 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance | |
| Dimensions | |
| Height | |
| Inductance | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature |

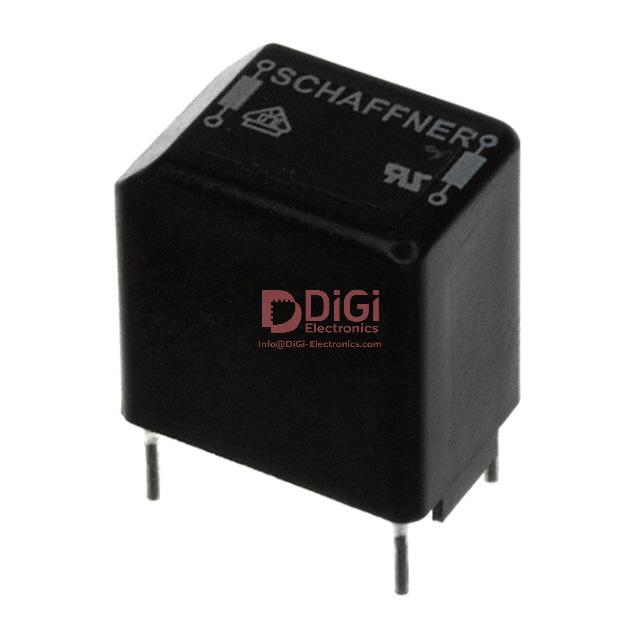

The Schaffner RN212-4-02 is a common mode choke designed for power line applications. It offers a nominal inductance of 700 µH at 10 kHz and can handle a typical current rating of 4A. The choke has a DC resistance of 27 mOhm (typical) and an AC voltage rating of 250V.
This component is designed for through-hole mounting and comes in a vertical, 4 PC pin package. It operates within a temperature range of -40°C to 125°C. The dimensions are 18.00mm in length and 12.50mm in width, with a maximum height of 20.30mm.
Key electrical specifications include its 2-line common mode filtering capability. The RN212-4-02 is suitable for various power filtering applications where common mode noise suppression is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 700 µH at 10 kHz.
The typical current rating is 4A.
The AC voltage rating is 250V.
It operates from -40°C to 125°C.
It is a through-hole mounted component.
