| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Operating Voltage | |
| Voltage Rating | |
| Width |

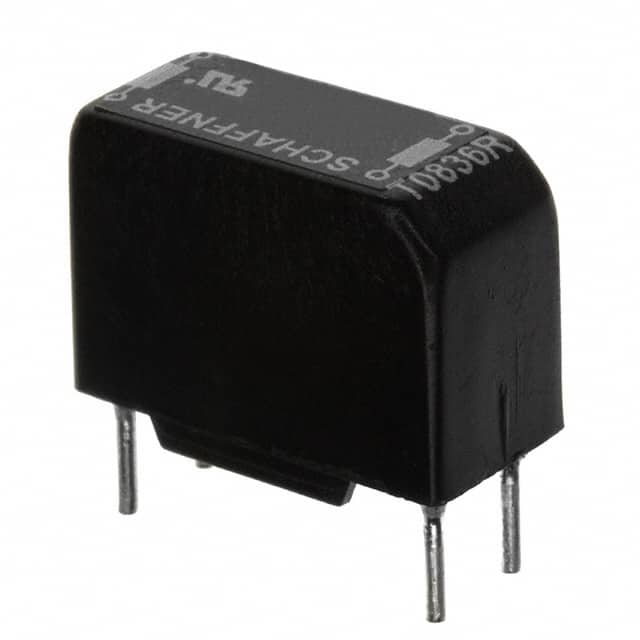

The Schaffner RN202-2-02-1M1 is a current-compensated common mode choke from the RN series. It is designed to attenuate common-mode or asymmetric interference signals in AC powerline inputs.
This choke operates at up to 300 VAC and has a rated current of 2A. The inductance is 1.1 mH at 10 kHz, with a DC resistance of 70 mOhm typical. It is constructed with a dual-choke configuration and features through-hole pin connections for PCB mounting.
The operating temperature range is -40°C to 100°C. The housing and potting compound are rated UL 94V-0 for flammability. This component is suitable for switch-mode power applications and EMI input filters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 300 VAC.
The package type is Vertical, 4 PC Pin with Through Hole mounting.
The operating temperature range is -40°C to 100°C.
Yes, it is RoHS3 Compliant.
The inductance is 1.1 mH at 10 kHz.
The maximum current rating is 2A.
