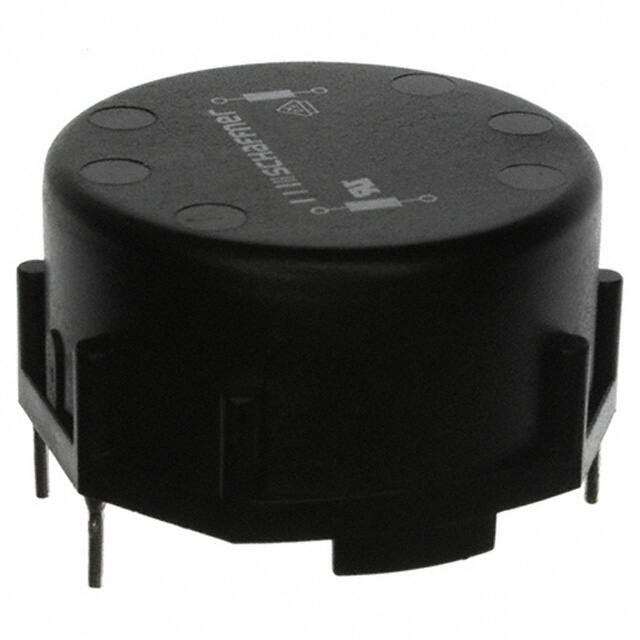

The Schaffner RN152-6-02-3M9 is a current-compensated common mode choke designed for attenuating common-mode interference signals in AC power lines. It operates with a voltage rating of 300 VAC and a frequency range from DC to 400 Hz.
Key electrical specifications include a rated inductance of 3.9 mH at 10 kHz and a maximum current rating of 6A. The DC resistance (DCR) is typically 42 mOhm. The choke is designed with 2 lines and features a through-hole mounting type with a horizontal, 4 PC pin package.
This component operates within a temperature range of -40°C to 100°C and meets flammability standards UL 94V-0 for its housing, potting compound, and ringcore coating. It is designed according to UL 1283 and IEC/EN 60938-1 standards, with approvals from ENEC, UR, and VDE.
Typical applications include switch-mode power supplies, EMI input filters, and suppression equipment where common-mode interference needs to be reduced.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated inductance is 3.9 mH at 10 kHz.
The maximum current rating is 6A.
The operating voltage is 300V AC.
The operating temperature range is -40°C to 100°C.
It is mounted using the through hole method.
