| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current | |
| Tape & Reel | |
| Temperature Range | |
| Voltage Rating | |
| Width |

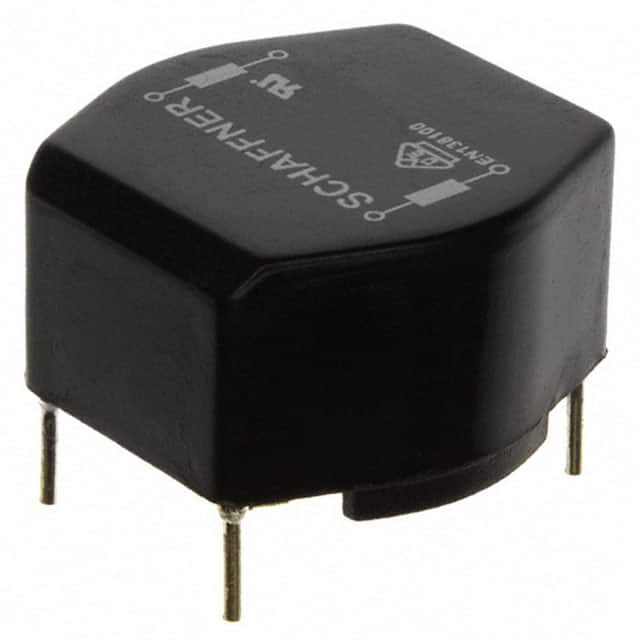

The RN116-0.5-02-47M is a common mode choke manufactured by Schaffner. It provides 47mH inductance at 10kHz and supports a maximum current of 500mA. The device operates over a temperature range of -40°C to 100°C and is compliant with RoHS3, REACH, and MSL 1 standards. It features through-hole mounting with dimensions approximately 22.50mm x 21.50mm x 13.50mm, and is suitable for EMI suppression in power line applications. The component is designed with UL 94V-0 flammability standards and conforms to UL 1283 and IEC/EN 60938-1 standards. It is intended for use in switch-mode power supplies, EMI input filters, and suppression equipment without earth connection. The device is supplied with a datasheet and is available for procurement with a minimum order quantity of one unit.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 47mH at 10kHz.
The maximum current rating is 500mA.
The operating temperature range is from -40°C to 100°C.
Yes, it is RoHS3 compliant.
It uses through-hole mounting.
