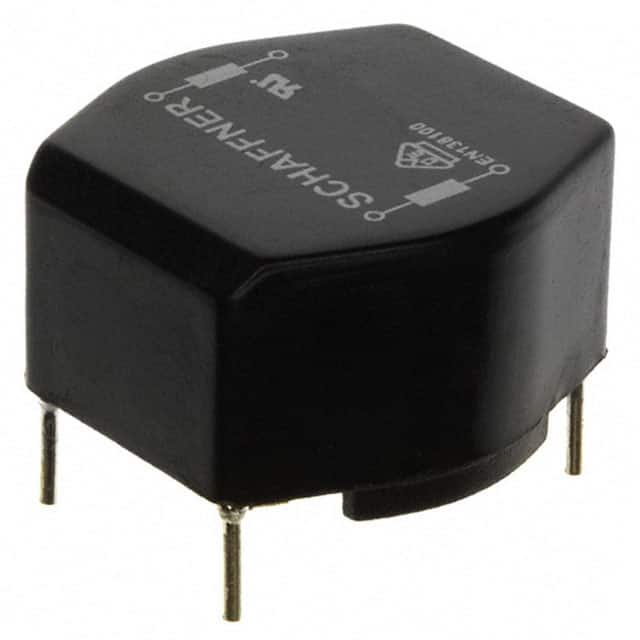

The Schaffner RN114-2.5-02-3M3 is a current-compensated common mode choke from the RN series. It is designed to attenuate common-mode or asymmetric interference signals in AC powerline inputs.
Key electrical specifications include an operating voltage of 300 VAC, a rated current of 2.5A, and an inductance of 3.3 mH at 10 kHz. The choke has a DC resistance of 63 mOhm (typical) and operates within a temperature range of -40°C to 100°C.
This component features through-hole mounting and a horizontal package with 4 PC pins. Its design corresponds to UL 1283 and IEC/EN 60938-1 standards, with housing and potting compound rated UL 94V-0 for flammability.
Typical applications include switch-mode power supplies, EMI input filters, and suppression equipment where common-mode interference needs to be reduced.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 300 VAC.
The inductance is 3.3 mH at 10 kHz.
The maximum current rating is 2.5A.
The operating temperature range is -40°C to 100°C.
It is a through-hole mounted component.
