| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Dimensions | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Inductance | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current | |
| Temperature Range | |
| Voltage Rating | |
| Width |

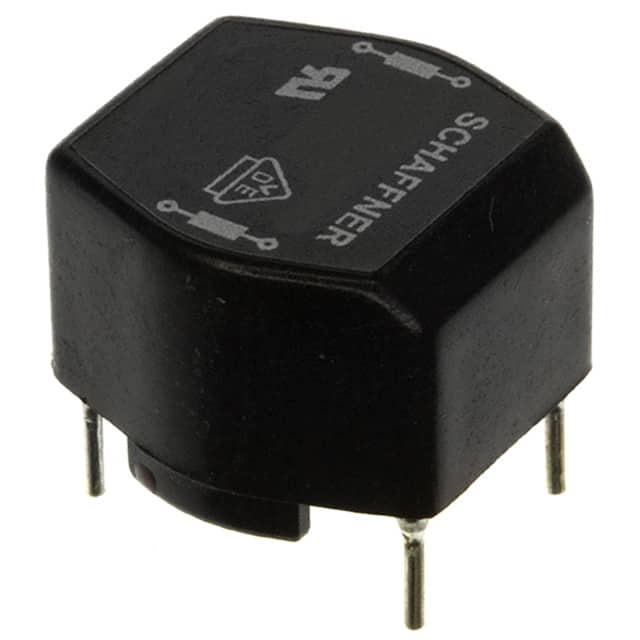

The RN112-0.5-02-27M is a common mode choke manufactured by Schaffner. It provides 27mH inductance at 10 kHz and is rated for a maximum current of 500mA. The device operates within a temperature range of -40°C to 100°C and is designed for power line EMI filtering. Its package is a horizontal, 4 PC pin through hole type, with dimensions of approximately 17.70mm in length and 17.10mm in width, and a maximum height of 12.90mm. It is compliant with RoHS3, REACH, and UL standards, suitable for ruggedized applications and switch-mode power supplies. The choke is used in EMI input filters, suppression equipment without earth connection, and phase-angle control circuits. It features high saturation resistance and excellent thermal behavior, with multiple housing options available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating voltage is 300 VAC.
It has an inductance of 27 mH at 10 kHz.
It is rated for a maximum current of 500mA.
Yes, it is RoHS3 compliant.
It features through hole mounting with a horizontal, 4 PC pin package.
