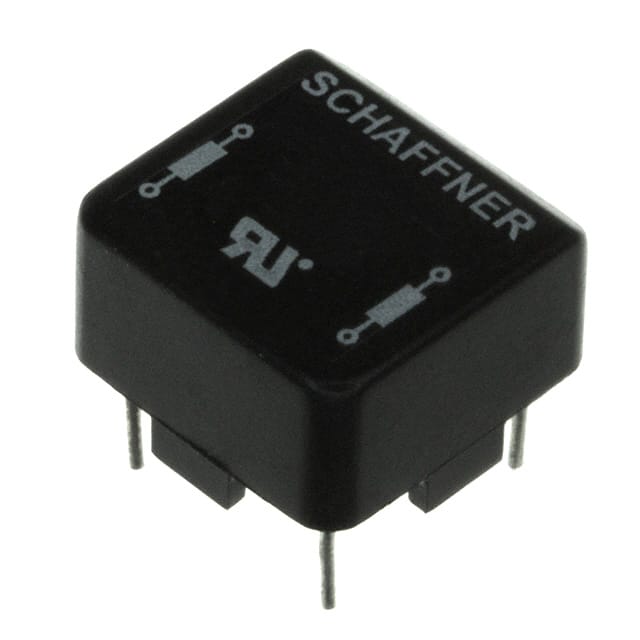

RN102-1-02 The RN102-1-02 is a common mode choke manufactured by Schaffner. It features 3mH inductance, 1A current rating, and a 250V voltage rating, designed for EMI filtering.
Mfr Part #:

RN102-1-02

Available from 2 distributors
Mfr Name: Schaffner
Schaffner
The RN102-1-02 is a common mode choke manufactured by Schaffner. It features 3mH inductance, 1A current rating, and a 250V voltage rating, designed for EMI filtering.
✓ Total Stock: 1,840 pcs
$ Price Range: $0.99

RN102-1-02 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,821 pcs
On Request
1821 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RN102-1-02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Length
Mounting Type
Number of Lines
Operating Temperature
Operating Voltage
Voltage Rating
Width
View Similar Products (0)

RN102-1-02 Description

Short technical summary and product information.

The RN102-1-02 is a common mode choke designed for EMI suppression in power line applications. Manufactured by Schaffner, it provides 3mH inductance at 1kHz, with a maximum current of 1A and a DC resistance of 205mOhm. Its operating temperature range is from -40°C to 125°C, suitable for rugged environments. The device features through-hole mounting with a horizontal, 4-pin package, and complies with RoHS3, REACH, and UL standards. It is used in switch-mode power supplies, EMI input filters, and suppression equipment without earth connection. The component is rated for 250V AC operation and is approved by UR and VDE agencies.

RN102-1-02 Quick Information

Product Type: Common Mode Choke
Canonical Name: Schaffner RN102-1-02 Common Mode Choke

RN102-1-02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RN102-1-02 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

RN102-1-02 Features

  • 3mH inductance at 1 kHz
  • Rated for 1A maximum current
  • Operating voltage up to 250V AC
  • Through hole mounting design
  • RoHS3 and REACH compliant

RN102-1-02 Applications

  • Used in EMI input filtering circuits
  • Suitable for switch-mode power supplies
  • Ideal for power line interference suppression
  • Designed for rugged industrial environments

RN102-1-02 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance value of the RN102-1-02?

The RN102-1-02 has an inductance of 3mH at 1kHz.

What is the maximum current rating for the RN102-1-02?

The maximum rated current is 1A.

What is the operating voltage of the RN102-1-02?

The operating voltage is 250V AC.

Is the RN102-1-02 RoHS compliant?

Yes, it is RoHS3 compliant.

What mounting type does the RN102-1-02 use?

It uses through-hole mounting with a horizontal, 4-pin package.
