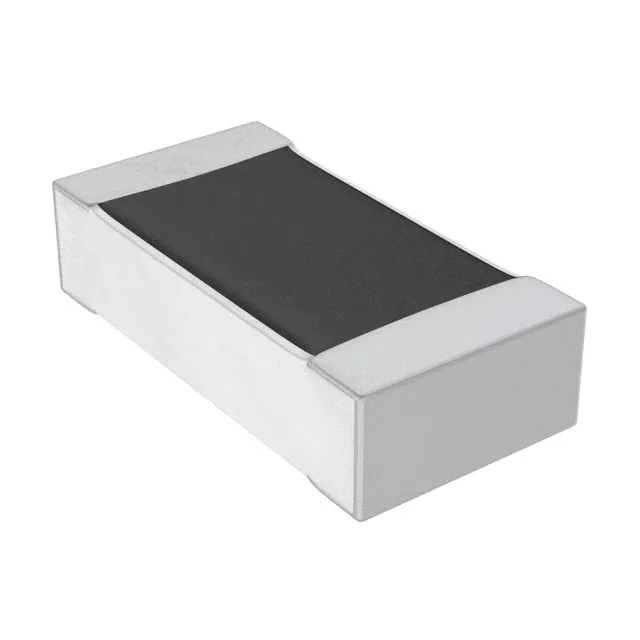

RMCF0603JT47K0 The Stackpole Electronics Inc. RMCF0603JT47K0 is a thick film chip resistor with a resistance of 47 kOhms and a tolerance of ±5%. It is rated for 0.1W power and features automotive AEC-Q200 compliance.
Mfr Part #:

RMCF0603JT47K0

Available from 3 distributors
Mfr Name: Stackpole Electronics Inc.
Stackpole Electronics Inc.
The Stackpole Electronics Inc. RMCF0603JT47K0 is a thick film chip resistor with a resistance of 47 kOhms and a tolerance of ±5%. It is rated for 0.1W power and features automotive AEC-Q200 compliance.
✓ Total Stock: 5,468 pcs
$ Price Range: $0.02

RMCF0603JT47K0 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5,296 pcs
On Request
5296 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
72 pcs
On Request
72 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RMCF0603JT47K0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Industrial Grade
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RMCF0603JT47K0 Description

Short technical summary and product information.

This RMCF0603JT47K0 component from Stackpole Electronics Inc. is a surface-mount chip resistor designed for various electronic applications. It offers a resistance value of 47 kOhms with a tight tolerance of ±5%, ensuring precise circuit performance.



The resistor is rated for 0.1W (1/10W) of power dissipation and is constructed using thick film technology. It operates within a wide temperature range of -55°C to 155°C, making it suitable for demanding environments. The component meets Automotive AEC-Q200 standards, indicating its suitability for automotive applications.



Packaged in the compact 0603 (1608 Metric) case size, it is designed for surface mounting. The dimensions are 1.55mm in length and 0.80mm in width, with a maximum seated height of 0.55mm. This size and mounting style are common in modern electronic assemblies where space is a constraint.



Environmental compliance includes RoHS3 compliance and an MSL 1 rating, signifying its suitability for standard manufacturing processes. The REACH status is unaffected.

RMCF0603JT47K0 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RMCF
Canonical Name: Stackpole Electronics Inc. RMCF0603JT47K0 Chip Resistor - Surface Mount, 47 kOhms, ±5%, 0.1W
Subcategory: Chip Resistor - Surface Mount

RMCF0603JT47K0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RMCF0603JT47K0 Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RMCF0603JT47K0 Features

  • 47 kOhms resistance with ±5% tolerance.
  • 0.1W power rating for general use.
  • Thick film construction for reliability.
  • Automotive AEC-Q200 qualification.
  • Compact 0603 surface-mount package.

RMCF0603JT47K0 Applications

  • Suitable for automotive electronics.
  • Used in general-purpose circuits.
  • Ideal for space-constrained designs.
  • Reliable for wide temperature ranges.

RMCF0603JT47K0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RMCF0603JT47K0?

The resistance value is 47 kOhms.

What is the tolerance of the RMCF0603JT47K0 resistor?

The tolerance is ±5%.

What is the power rating of the RMCF0603JT47K0?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RMCF0603JT47K0 available in?

It is available in the 0603 (1608 Metric) package size.

Is this resistor AEC-Q200 qualified?

Yes, this resistor features Automotive AEC-Q200 qualification.
