| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,120 pcs
|
1120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

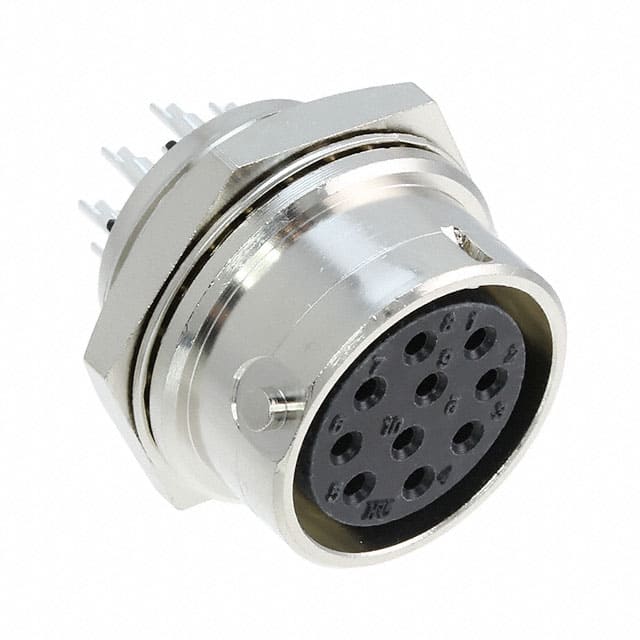

The RM15QRD-10S(71) is a 10-position circular connector receptacle from Hirose Electric, part of the RM series. This panel-mount receptacle features female socket contacts with solder cup termination for secure wiring. The connector uses a push-twist fastening mechanism with keyed orientation to ensure proper alignment during mating.
Electrical specifications include a current rating of 5A for 10 contacts, voltage rating of 350VAC and 490VDC, contact resistance of 4 mΩ maximum, insulation resistance of 1000 MΩ minimum, and a withstanding voltage of 1000 VAC. The nickel-plated brass shell and silver contacts provide durability and reliable conductivity.
Designed for repeated use, the connector withstands 2000 mating cycles and passes vibration testing (10-55Hz, 0.75mm amplitude) and shock testing (490 m/s², 11ms) without electrical discontinuity. It operates over a temperature range of -25°C to 85°C and meets UL94 V-0 flammability rating.
Typical applications include industrial control panels, automation systems, and harsh environment signal connections where the robust push-twist locking and panel-mount configuration are advantageous. The connector is identified by the DigiKey cross-reference part number H124349-ND.
It has 10 positions for female socket contacts.
It is rated for 5A current for 10 contacts.
It is rated for 350VAC and 490VDC.
Panel mount with a bulkhead rear side nut.
Solder cup termination.
Brass shell with nickel plating.
2000 mating cycles.
