| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

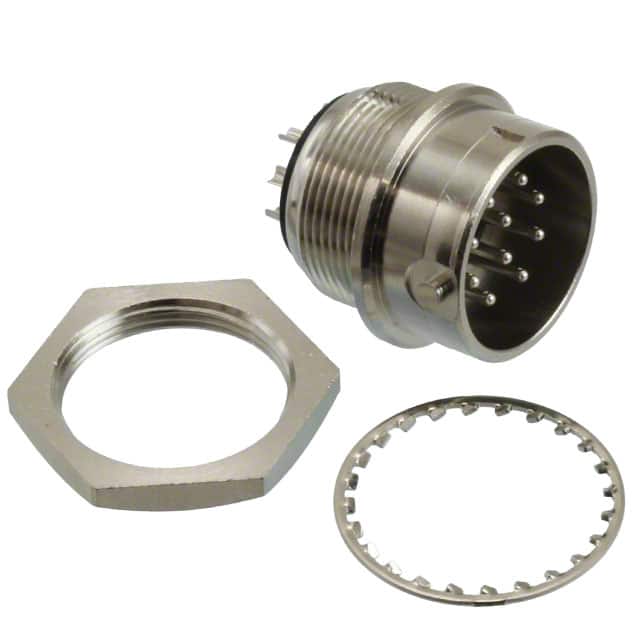

The Hirose RM15QRD-10PH(71) is a 10-position circular connector receptacle from the RM series. It features male pins arranged in a keyed orientation to prevent misalignment. The connector is designed for panel mounting with a bulkhead rear side nut, providing secure installation. Termination is via solder cups, allowing straightforward wire attachment. The shell is made of brass with a nickel finish, and contacts are silver-plated for reliable conductivity.
Electrical ratings include a current capacity of 5A per contact and voltage rating of 350VAC or 490VDC. The connector meets UL94 V-0 flammability requirements and operates over a temperature range of -25°C to 85°C. Insulation resistance is 1000 MΩ minimum at 500VDC, and contact resistance is 4 mΩ maximum at 1A. Withstanding voltage is 1000VAC for 1 minute for the 10-contact configuration.
The push-twist fastening mechanism ensures quick and secure mating. This connector is suitable for a variety of industrial and commercial applications requiring a compact, reliable circular interface.
10 positions.
5A per contact.
350VAC and 490VDC.
Panel mount with bulkhead rear side nut.
Solder cup.
Push-twist.
-25°C to 85°C.
