| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2009 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating DC |

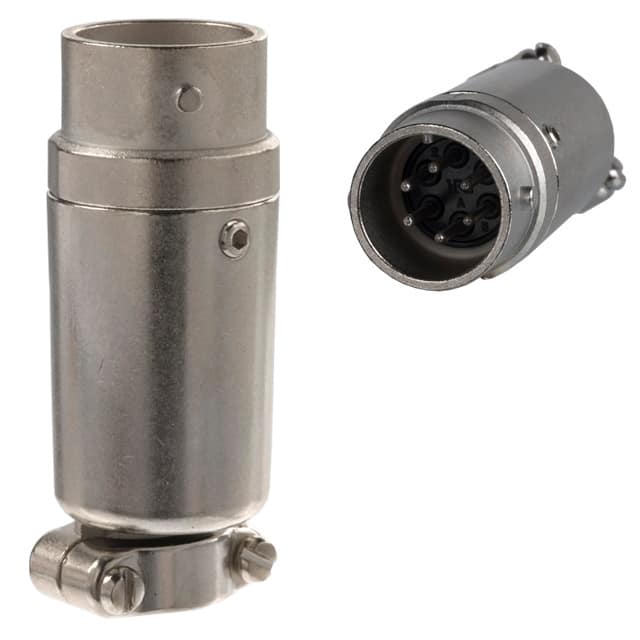

The Hirose RM12BJB-6PH is a 6-position circular connector from the RM series, designed for reliable multi-pin connections in industrial and instrumentation applications. It features a jack with male pins, solder cup termination for easy field wiring, and a bayonet lock mechanism for secure mating. The connector is rated for 5A continuous current and 350VAC/490VDC, with an operating temperature range of -25°C to 85°C. The shell is made of nickel-plated zinc alloy, and the contacts are silver-plated for low resistance. It includes a backshell and cable clamp, and accommodates cable diameters from 5mm to 8mm. The mounting type is free hanging (in-line), making it suitable for cable-to-cable or cable-to-panel connections where a robust, quick-disconnect interface is required.
6 positions.
5A.
350VAC and 490VDC.
Free hanging (in-line).
Solder cup.
Bayonet lock.
-25°C to 85°C.
