| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

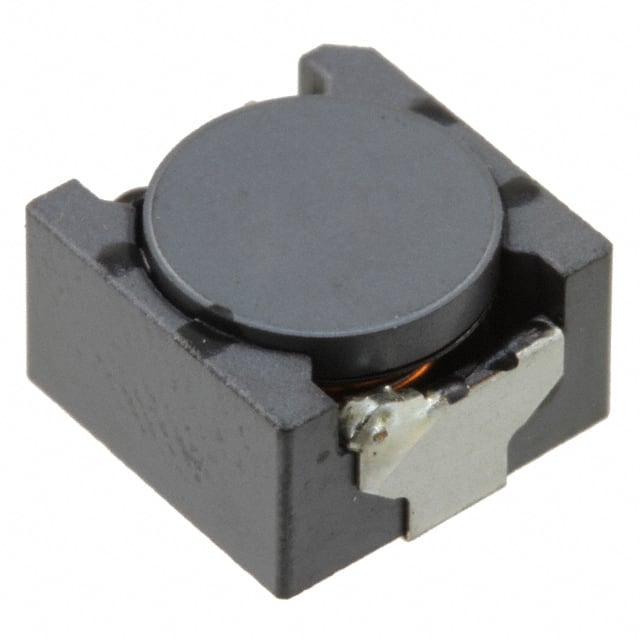

This TDK Corporation RLF10160T-221MR70-D is a shielded, wirewound drum core inductor designed for surface mounting. It offers a nominal inductance of 220µH with a tolerance of ±20% and a maximum DC resistance of 490.8mOhm. The component is rated for a saturation current of 700mA and a temperature rise current of 1A.
With an operating temperature range of -40°C to 150°C, this inductor is suitable for demanding applications. It features a high magnetic shield construction for EMC protection and is qualified according to AEC-Q200 standards, making it ideal for automotive appliances and electric control devices. The dimensions are 10.2mm x 10.0mm with a maximum height of 6.4mm.
Applications include automotive electric control devices and high-temperature operation devices such as ECM, HID, SRS Air Bag, Transmission control, Power steering control, and Brake control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 220 µH with a tolerance of ±20%.
The maximum DC resistance (DCR) is 490.8 mOhm.
It has a saturation current rating of 700mA and a temperature rise current rating of 1A.
The operating temperature range is -40°C to 150°C.
Yes, this inductor is qualified according to AEC-Q200 standards.
It is a surface mount, nonstandard package designed for tape and reel.
