| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Current Max (Maximum) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 1.0 kHz) | |
| Q Factor (Typical @ 2.52 MHz) | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| dcr (Maximum) | |
| inductance (Nominal @ 1.0 kHz) | |
| inductance (Nominal @ 2.52 MHz) |

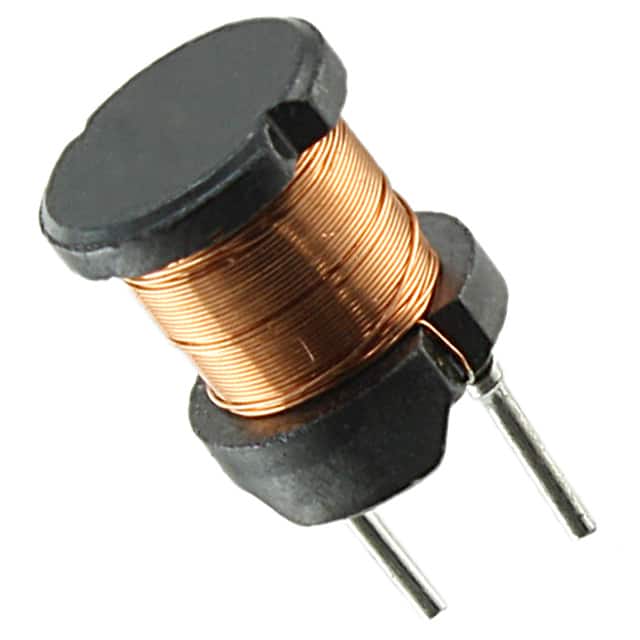

The Bourns RL895-180K-RC is a fixed inductor from the RL895 series, designed for power supply and DC/DC converter applications. This wirewound, drum core inductor offers an inductance value of 18µH with a tolerance of ±10% and a maximum DC current rating of 2A. It has a low DC resistance (DCR) of 50mΩ maximum.
The inductor is unshielded and operates within a temperature range of -30°C to 100°C. It is housed in a radial, vertical cylinder package suitable for through-hole mounting. The dimensions are 9.50mm in height and 7.80mm in diameter.
Key electrical characteristics include a Q factor of 40 at 2.52MHz and a frequency rating of 10MHz. The material is ferrite, contributing to its magnetic properties. This component is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 18 µH.
The maximum DC current rating is 2 A.
The maximum DC resistance is 50mΩ.
It uses a radial, vertical cylinder (open) package.
It is designed for through-hole mounting.
