| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
518 pcs
|
518 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
518 pcs
|
518 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Current Rating (Maximum) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 1 kHz) | |
| Self Resonant Frequency (Typical) | |
| Shielding | |
| Tolerance | |
| Type | |
| dcr (Maximum) | |
| inductance (Typical @ 2.52 MHz) |

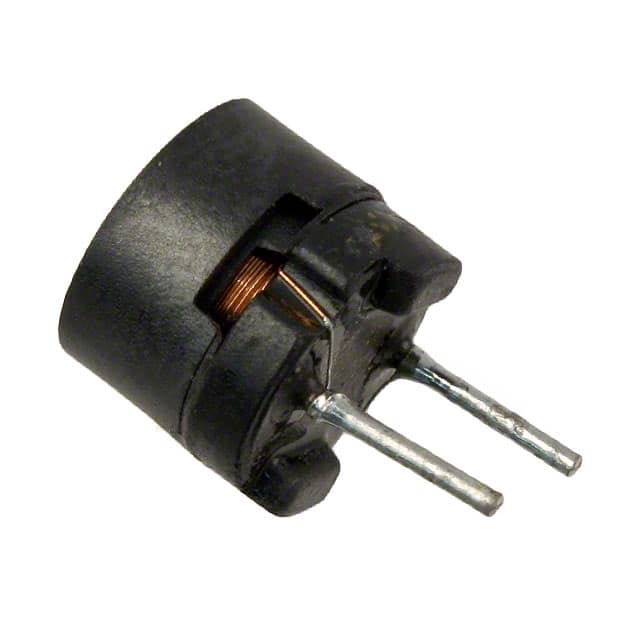

The Bourns RL875S-101K-RC is a fixed inductor from the RL875S series, designed for applications requiring reliable inductance and current handling. This component features a drum core construction with wirewound technology, providing a stable inductance of 100µH with a tolerance of ±10%.
Key electrical specifications include a maximum current rating of 740mA and a maximum DC resistance of 320mOhm. The inductor is shielded, which helps to minimize electromagnetic interference in sensitive circuits. It operates within a temperature range of -40°C to 105°C.
Designed for through-hole mounting, the RL875S-101K-RC has a radial, vertical cylinder package. Its dimensions are 7.80mm in diameter and 7.50mm in height. This inductor is suitable for various power applications, including DC/DC converters and power supplies, where its robust construction and electrical characteristics ensure consistent performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 100 µH.
The maximum current rating is 740 mA.
The maximum DC resistance is 320 mOhm.
The operating temperature range is -40°C to 105°C.
This inductor is designed for through-hole mounting.
The package type is Radial, Vertical Cylinder.
