| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating (Amps) | |
| Current Rating (Maximum @ 796 kHz) | |
| Current Rating (Maximum) | |
| Current Rating (Unspecified condition) | |
| DC Resistance (DCR) | |
| Diameter | |
| Factory Pack Quantity | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Spacing | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Minimum) | |
| Q Factor (Minimum/Typical @ 796 kHz) | |
| Self Resonant Frequency (Typical @ 796 kHz) | |
| Self Resonant Frequency (Unspecified condition) | |
| Shielding | |
| Test Frequency | |
| Tolerance | |
| Type | |
| dcr (Maximum @ 796 kHz) | |
| dcr (Maximum) |

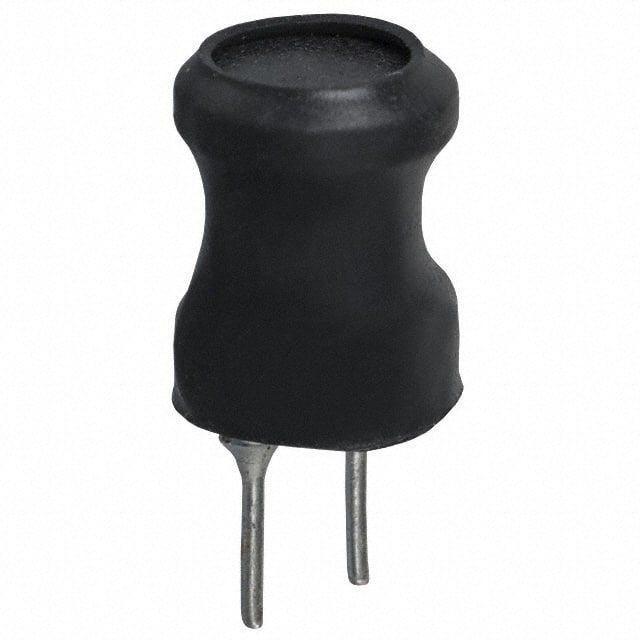

The Bourns RL622-221K-RC is a fixed inductor belonging to the RL622 series. This component is designed with a drum core and wirewound construction, featuring a ferrite material.
Key electrical specifications include an inductance of 220µH with a tolerance of ±10%. It has a maximum DC current rating of 640mA and a DC resistance (DCR) of 650mOhm. The Q factor is rated at 20 at 796kHz, and the self-resonant frequency is 2.7MHz.
This inductor operates within a temperature range of -55°C to 105°C. It is designed for through-hole mounting and comes in a radial, vertical cylinder package. The dimensions include a height of 11.00mm and a diameter of 8.50mm.
The RL622-221K-RC is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the RL622-221K-RC is 220µH.
The maximum DC current rating for the RL622-221K-RC is 640mA.
The maximum DC resistance (DCR) for the RL622-221K-RC is 650mOhm.
The operating temperature range for the RL622-221K-RC is -55°C to 105°C.
The RL622-221K-RC is designed for through-hole mounting.
The self-resonant frequency (SRF) of the RL622-221K-RC is 2.7MHz.
