| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Frequency | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type |

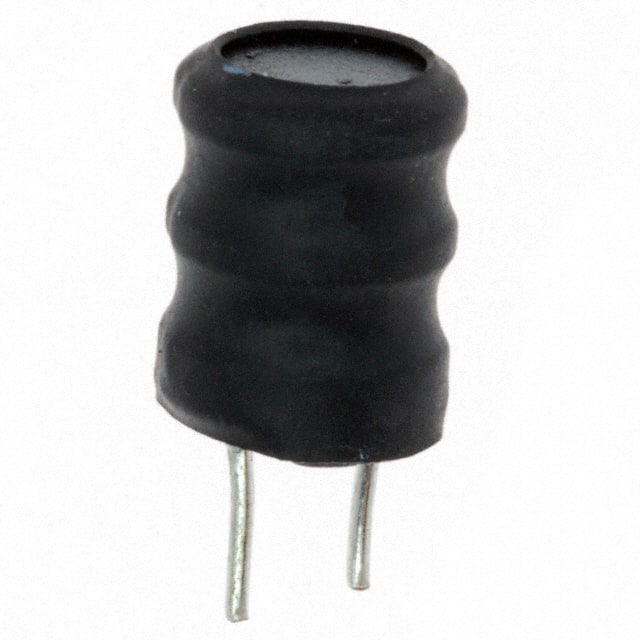

The Bourns RL187-102J-RC is a fixed inductor from the RL187 Series, designed for RF applications. It offers an inductance value of 1mH with a tolerance of ±5%. The inductor has a current rating of 150mA and a DC resistance of 6 Ohm Max.
This component features a wirewound ferrite drum core and is unshielded. It is designed for through-hole mounting and comes in a radial, vertical cylinder package. The operating temperature range is -55°C to 105°C. The self-resonant frequency is 1.3MHz, and the Q factor is typically 90 at 252kHz.
Key electrical specifications include a 1mH inductance and a 150mA current rating. The physical dimensions include a height of 11.20mm (0.441") and a diameter of 8.00mm (0.315"). This inductor is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the RL187-102J-RC is 1mH.
The current rating for the RL187-102J-RC is 150mA.
The DC resistance (DCR) is 6 Ohm Max.
The self-resonant frequency is 1.3MHz.
The RL187-102J-RC is in a Radial, Vertical Cylinder package.
