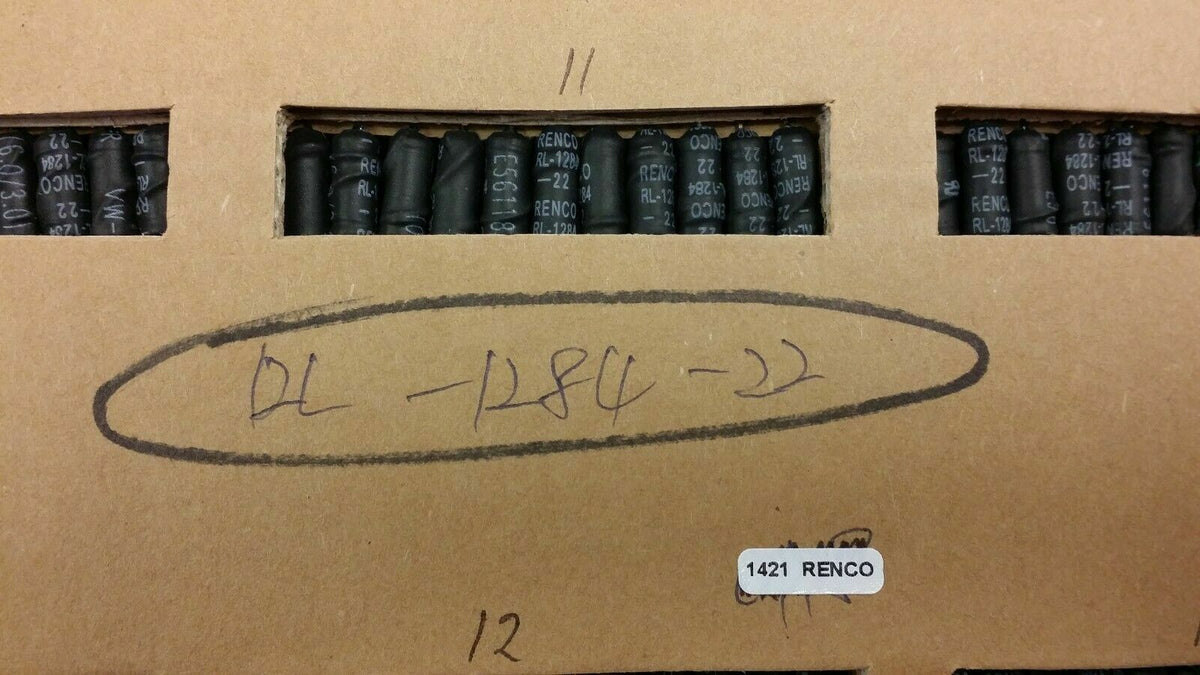

RL-1284-22 The RENCO RL-1284-22 is a general purpose inductor with 22uH inductance and 15% tolerance. It features an axial termination and a tubular package.
Mfr Part #:

RL-1284-22

Available from 1 distributors
Mfr Name: Renco Electronics
Renco Electronics
The RENCO RL-1284-22 is a general purpose inductor with 22uH inductance and 15% tolerance. It features an axial termination and a tubular package.
✓ Total Stock: 599 pcs
$ Price Range: $0.35

RL-1284-22 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
599 pcs
On Request
599 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RL-1284-22 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
DC Resistance
Inductance
Mounting Type
Rated Current
Test Frequency
Tolerance
View Similar Products (0)

RL-1284-22 Description

Short technical summary and product information.

The RENCO RL-1284-22 is a general purpose inductor designed for power applications. It offers a nominal inductance of 22µH with a tolerance of 15%. This inductor has a DC resistance of 0.05 ohm and a maximum rated current of 1.28A.



Constructed with a tubular package and axial terminal placement, this non-shielded inductor operates within a temperature range of -55°C to 130°C. Its core material is non-specified, and it is suitable for use in switching regulated power supply applications.



Typical applications include power amplifiers, power supplies, SCR and TRIAC controls, speaker crossover networks, and filters. The RL-1284 series offers inductances ranging from 3.9µH to 18,000µH, making these coils easy to incorporate into various equipment designs.

RL-1284-22 Quick Information

Product Type: Inductor
Series: RL-1284
Canonical Name: RENCO RL-1284-22 General Purpose Inductor
Subcategory: Power Inductor

RL-1284-22 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RL-1284-22 Estimated Pricing

Qty Low High
1+ $0.35 $0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

RL-1284-22 Features

  • General purpose inductor with 22µH inductance.
  • 15% tolerance for precise circuit performance.
  • Axial termination in a tubular package.
  • Rated for 1.28A maximum current.
  • Wide operating temperature range of -55°C to 130°C.

RL-1284-22 Applications

  • Ideal for switching regulators.
  • Suitable for power supply circuits.
  • Used in power amplifiers.
  • Applicable for SCR and TRIAC controls.
  • Component in speaker crossover networks.

RL-1284-22 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the RL-1284-22?

The nominal inductance of the RL-1284-22 is 22µH.

What is the tolerance of the RL-1284-22 inductor?

The tolerance for the RL-1284-22 inductor is 15%.

What is the DC resistance of the RL-1284-22?

The DC resistance of the RL-1284-22 is 0.05 ohm.

What is the maximum rated current for the RL-1284-22?

The maximum rated current for the RL-1284-22 is 1.28A.

What is the operating temperature range for the RL-1284-22?

The RL-1284-22 operates between -55°C and 130°C.

What type of inductor is the RL-1284-22?

The RL-1284-22 is a general purpose inductor.

Is the RL-1284-22 surface mountable?

No, the RL-1284-22 is not a surface mount component; it features axial termination.
