| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

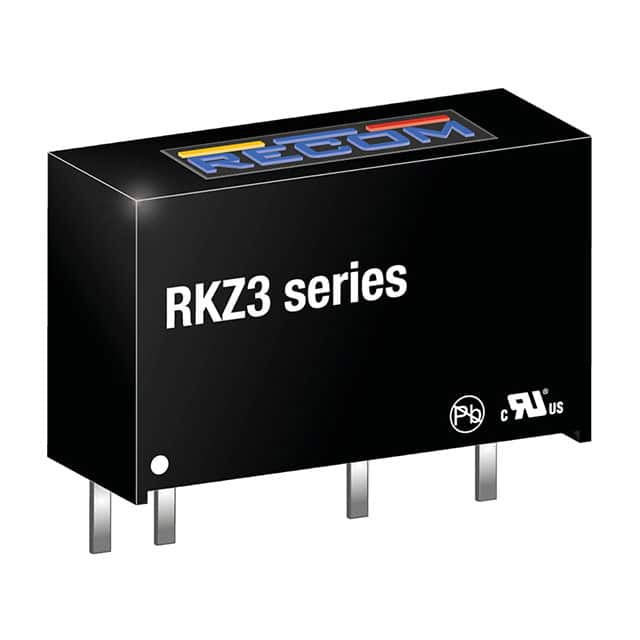

The Recom Power RKZ3-0505S/H is a 3W isolated DC/DC converter from the RKZ3 series, designed for demanding industrial applications requiring high isolation. It provides a single regulated 5V output at 600mA from a nominal 5V input (4.5V to 5.5V range).
The converter offers 4kVDC isolation (1 second rating) and is safety certified to IEC/EN 62368-1. Key electrical characteristics include a typical efficiency of 85%, output ripple and noise of 100mVp-p maximum, and a switching frequency of 20kHz. The device requires no minimum load and can drive capacitive loads up to 2000µF.
The RKZ3-0505S/H is housed in a 7-SIP module with 4 leads and is designed for through-hole mounting. Its compact dimensions are 19.6mm x 7.5mm x 12.2mm. The operating temperature range is -40°C to 90°C, making it suitable for commercial ITE applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.77 | $11.77 |
| 5+ | $11.34 | $11.34 |
| 10+ | $11.15 | $11.15 |
| 24+ | $10.30 | $10.30 |
| 48+ | $10.17 | $10.17 |
| 120+ | $10.05 | $10.05 |
| 264+ | $9.88 | $9.88 |
| 504+ | $9.72 | $9.72 |
| 1,008+ | $9.69 | $9.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V and the output current is 600mA.
The input voltage range is 4.5V to 5.5V (nominal 5V).
The isolation voltage is 4kVDC for 1 second.
The operating temperature range is -40°C to 90°C.
It comes in a 7-SIP Module, 4 Leads through-hole package.
The part is listed as RoHS3 Compliant, though this is unverified from the datasheet.
The typical efficiency is 85% at nominal input and full load.
