| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Internal Operating Frequency | |
| Lead Style | |
| Length | |
| Max Capacitive Load | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Ripple and Noise | |
| Power (Watts) | |
| Size / Dimension | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output 1 | |
| Width |

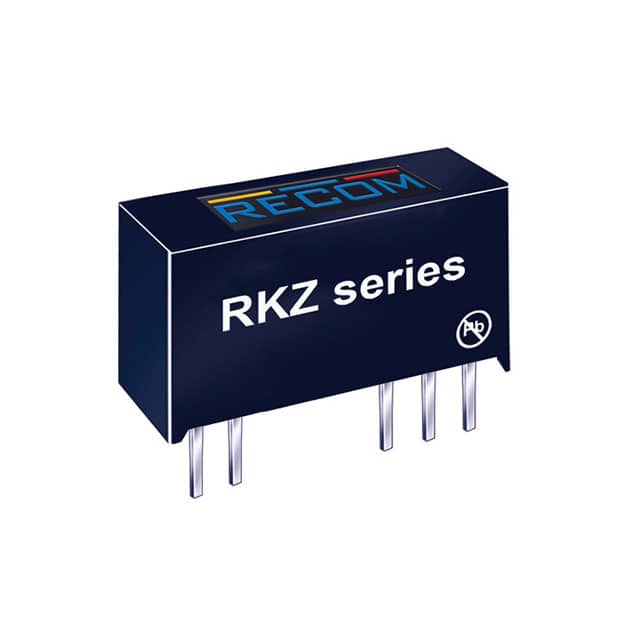

The RKZ-2405S is a 2W isolated DC/DC converter from Recom Power's RKZ series. It accepts a nominal 24V input (21.6V to 26.4V range) and provides a single 5V output at up to 400mA with typical efficiency of 84%. The converter features 150mVp-p maximum output ripple and noise (20MHz BW) and can drive capacitive loads up to 1500µF. It operates at a typical switching frequency of 85kHz and requires no minimum load.
The RKZ-2405S is housed in a 7-SIP through-hole module measuring 19.7mm x 7.1mm x 10.2mm. It is designed for ITE (commercial) and medical applications and is certified to IEC/EN60950-1 and IEC/EN60601-1. The device is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.63 | $11.63 |
| 5+ | $11.20 | $11.20 |
| 10+ | $11.02 | $11.02 |
| 25+ | $10.78 | $10.78 |
| 50+ | $10.60 | $10.60 |
| 100+ | $10.43 | $10.43 |
| 250+ | $10.21 | $10.21 |
| 500+ | $9.85 | $9.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 24V, with a range of 21.6V to 26.4V (±10%).
It provides a single 5V output at up to 400mA, with a total output power of 2W.
Typical efficiency is 84% at nominal input, full load, and +25°C ambient.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant.
It comes in a 7-SIP through-hole module with 4 leads, measuring 19.7mm x 7.1mm x 10.2mm.
No, it requires 0% minimum load.
