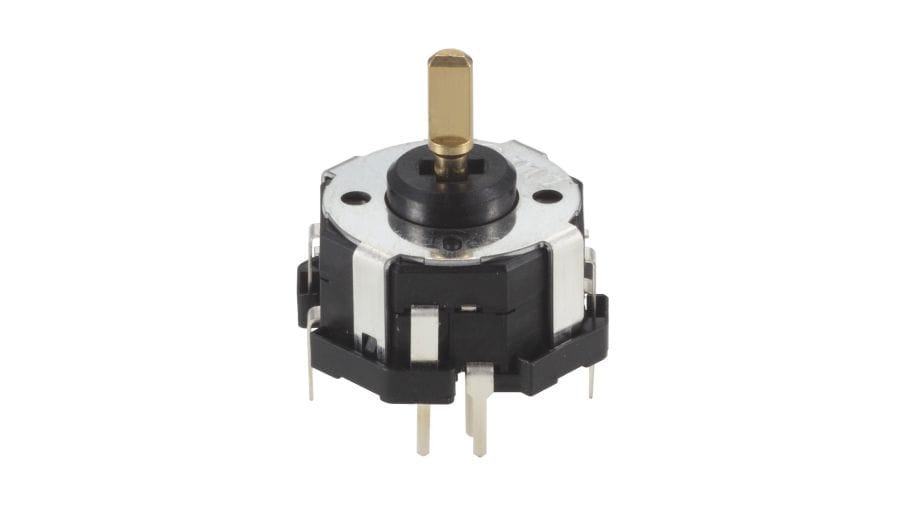

RKJXT1F42001 The RKJXT1F42001 is a 4-directional stick switch with encoder and center-push function from Alps Alpine. It features a 9° operating angle, 30 detents, 15 pulses, and operates from -40°C to +85°C.
Mfr Part #:

RKJXT1F42001

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The RKJXT1F42001 is a 4-directional stick switch with encoder and center-push function from Alps Alpine. It features a 9° operating angle, 30 detents, 15 pulses, and operates from -40°C to +85°C.
✓ Total Stock: 69 pcs

RKJXT1F42001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
69 pcs
On Request
69 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RKJXT1F42001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Operating Temperature Range
Ratings
SVHC Present
Switch Type
View Similar Products (0)

RKJXT1F42001 Description

Short technical summary and product information.

The RKJXT1F42001 is a 4-directional stick switch with integrated encoder and center-push function manufactured by Alps Alpine. This component combines directional input with rotational encoding and a push-button action, making it suitable for multi-function control interfaces.



Key specifications include a maximum operating angle of 9° per direction, center-push travel of 0.3±0.2 mm, and an encoder with 30 detents and 15 pulses per revolution. The switch is rated for 10mA at 5V DC resistive load and operates over a temperature range of -40°C to +85°C.



The device measures 17.0×17.0×10.5 mm and is designed for through-hole or surface-mount assembly depending on the variant. Its compact size and integrated functions make it ideal for applications requiring precise navigation and selection in a single component.

RKJXT1F42001 Quick Information

Product Type: Navigation Switch
Canonical Name: 4-directional Stick Switch with Encoder and Center-push Function
Subcategory: Joystick with Encoder

RKJXT1F42001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RKJXT1F42001 Features

  • 4-directional stick switch with encoder.
  • Center-push function with 0.3 mm travel.
  • 30 detents and 15 pulses per revolution.
  • 9° maximum operating angle per direction.
  • Rated for 10mA at 5V DC resistive load.

RKJXT1F42001 Applications

  • Ideal for menu navigation in consumer electronics.
  • Used in automotive infotainment control interfaces.
  • Suitable for industrial equipment joystick controls.
  • Perfect for handheld device multi-function inputs.

RKJXT1F42001 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the RKJXT1F42001?

The operating temperature range is -40°C to +85°C.

What is the operating angle of the stick switch?

The maximum operating angle is 9° per direction.

What are the dimensions of the RKJXT1F42001?

The dimensions are 17.0×17.0×10.5 mm.

How many detents and pulses does the encoder have?

The encoder has 30 detents and 15 pulses.

What is the center-push travel distance?

The center-push travel is 0.3±0.2 mm.

What are the electrical ratings of this switch?

The switch is rated for 10mA at 5V DC resistive load.
