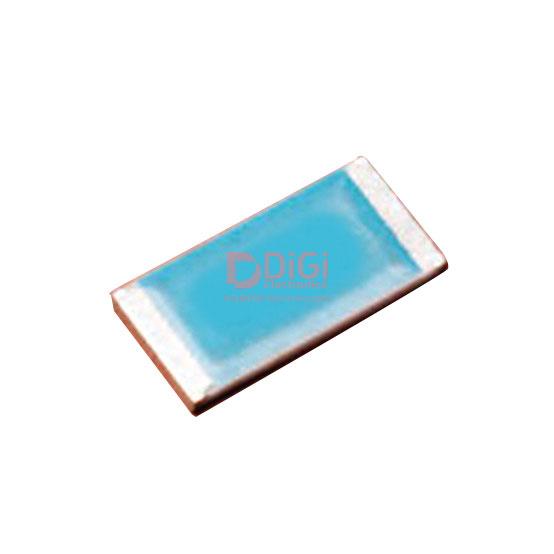

RK73H2BTTD7501F The KOA Speer Electronics RK73H2BTTD7501F is a thick film chip resistor with a resistance of 7.5 kOhms and a tolerance of ±1%. It is rated for 0.25W and features AEC-Q200 automotive qualification.
Mfr Part #:

RK73H2BTTD7501F

Available from 3 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics RK73H2BTTD7501F is a thick film chip resistor with a resistance of 7.5 kOhms and a tolerance of ±1%. It is rated for 0.25W and features AEC-Q200 automotive qualification.
✓ Total Stock: 12,478 pcs
$ Price Range: $0.01

RK73H2BTTD7501F Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
4,094 pcs
On Request
4094 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
3,384 pcs
$0.01 ℹ
Qty Price
0+ 0.01
3384 pcs $0.01
QtyPrice
0+ 0.01
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73H2BTTD7501F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RK73H2BTTD7501F Description

Short technical summary and product information.

This KOA Speer Electronics RK73H2BTTD7501F is a surface mount chip resistor from the RK73H series. It offers a precise resistance value of 7.5 kOhms with a tight tolerance of ±1%. The resistor is designed for a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to 155°C.



Constructed with thick film technology, this component is suitable for demanding applications, indicated by its AEC-Q200 automotive rating and moisture resistance. The package size is 1206 (3216 Metric), with dimensions of 3.20mm in length and 1.60mm in width. It has a height of 0.70mm and features 2 terminations.



The temperature coefficient is ±100ppm/°C, ensuring stable performance across varying temperatures. This component is RoHS3 compliant and has an MSL rating of 1.

RK73H2BTTD7501F Quick Information

Product Type: Chip Resistor
Series: RK73H
Canonical Name: KOA Speer Electronics RK73H Series Thick Film Chip Resistor, 7.5 kOhms, ±1% Tolerance, 0.25W
Subcategory: Surface Mount

RK73H2BTTD7501F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73H2BTTD7501F Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73H2BTTD7501F Features

  • 7.5 kOhms resistance with ±1% tolerance.
  • 0.25W power rating in a 1206 package.
  • AEC-Q200 automotive qualified.
  • Moisture resistant thick film construction.
  • Wide operating temperature range: -55°C to 155°C.

RK73H2BTTD7501F Applications

  • Suitable for automotive applications.
  • Ideal for circuits requiring stable resistance.
  • Used in environments with high humidity.
  • Surface mount component for automated assembly.

RK73H2BTTD7501F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73H2BTTD7501F resistor?

The resistance value is 7.5 kOhms.

What is the tolerance of the RK73H2BTTD7501F resistor?

The tolerance is ±1%.

What is the power rating of the RK73H2BTTD7501F resistor?

The power rating is 0.25W, or 1/4W.

What is the operating temperature range for the RK73H2BTTD7501F resistor?

The operating temperature range is -55°C to 155°C.

What is the temperature coefficient of the RK73H2BTTD7501F resistor?

The temperature coefficient is ±100ppm/°C.

What are the dimensions of the RK73H2BTTD7501F resistor?

The dimensions are 3.20mm (Length) x 1.60mm (Width) x 0.70mm (Height).

Does the RK73H2BTTD7501F resistor meet automotive standards?

Yes, it is AEC-Q200 qualified and moisture resistant.
