| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
969 pcs
|
969 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

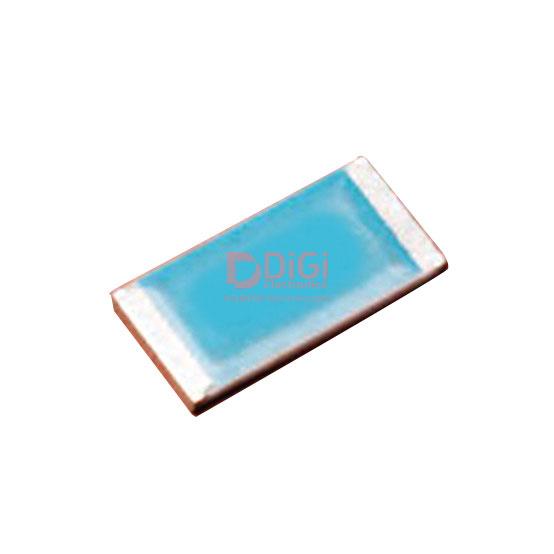

The KOA Speer RK73H2BTTD2940F is a surface mount chip resistor from the RK73H series. It features a thick film composition, offering a resistance value of 294 Ohms with a tight tolerance of 1%. This resistor is designed to handle a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to 155°C.
The component is housed in a 1206 (3216 Metric) package, with dimensions of 3.20mm in length and 1.60mm in width. It has a height of 0.70mm. The RK73H2BTTD2940F is AEC-Q200 qualified and features moisture resistance, making it suitable for automotive applications.
Key electrical characteristics include a temperature coefficient of ±100ppm/°C and two terminations. The resistor is designed for surface mounting, utilizing standard thick film technology for reliable performance in various electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 294 Ohms.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The operating temperature range is -55°C to 155°C.
The resistor measures 3.20mm in length, 1.60mm in width, and 0.70mm in height.
Yes, the RK73H2BTTD2940F resistor is AEC-Q200 qualified.
The resistor uses a thick film composition.
