| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,523 pcs
|
1523 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

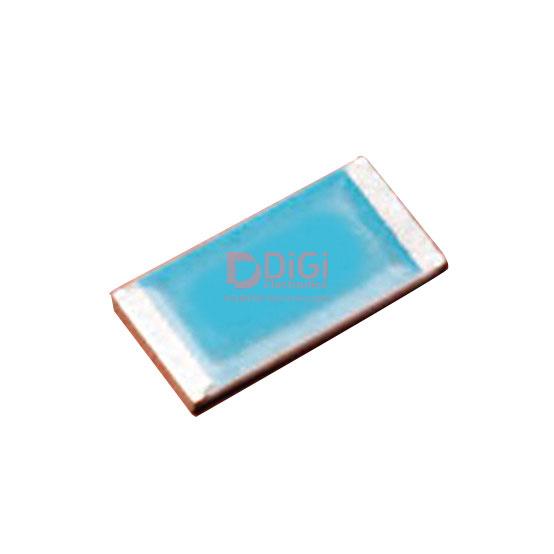

This KOA Speer Electronics RK73H2BTTD1692F is a surface mount chip resistor from the RK73H series. It offers a resistance value of 16.9 kOhms with a tight tolerance of ±1%. The resistor is rated for 0.25W of power and operates within a temperature range of -55°C to 155°C.
The component features a thick film composition and comes in a standard 1206 (3216 Metric) package. It is designed for surface mounting and has 2 terminations. The RK73H series is known for its precision and reliability, making it suitable for various electronic applications.
Key electrical characteristics include a temperature coefficient of ±100ppm/°C. The resistor also meets automotive AEC-Q200 standards and is moisture resistant, indicated by its MSL 1 rating. This makes it a robust choice for demanding environments.
Dimensions for the 1206 package are approximately 3.20mm in length and 1.60mm in width, with a height of 0.70mm. The RK73H2BTTD1692F is supplied on tape and reel for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 16.9 kOhms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The operating temperature range is -55°C to 155°C.
It comes in a 1206 (3216 Metric) package.
Yes, the RK73H2BTTD1692F is AEC-Q200 qualified.
