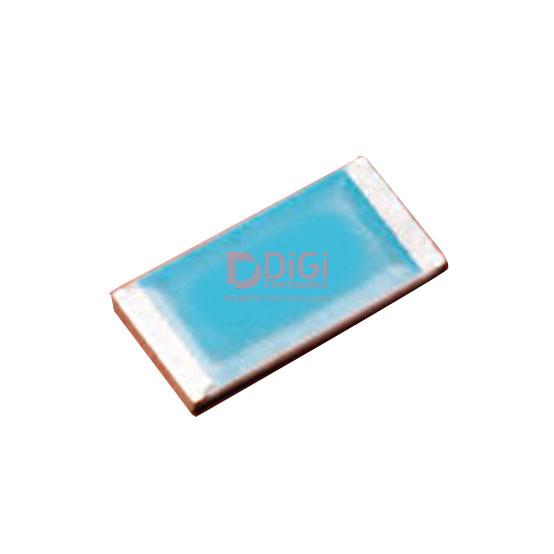

RK73H2BTTD1690F The KOA Speer Electronics RK73H2BTTD1690F is a 169 Ohm, 1% tolerance thick film chip resistor in a 1206 package. It is rated for 1/4W and operates from -55°C to 155°C.
Mfr Part #:

RK73H2BTTD1690F

Available from 1 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics RK73H2BTTD1690F is a 169 Ohm, 1% tolerance thick film chip resistor in a 1206 package. It is rated for 1/4W and operates from -55°C to 155°C.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.02

RK73H2BTTD1690F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73H2BTTD1690F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RK73H2BTTD1690F Description

Short technical summary and product information.

This RK73H2BTTD1690F from KOA Speer Electronics is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 169 Ohms with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).



The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. Its thick film composition ensures reliable performance.



The component is housed in a standard 1206 (3216 Metric) package, measuring 3.20mm in length, 1.60mm in width, and 0.70mm in height. It is AEC-Q200 qualified and moisture resistant, making it suitable for automotive applications.



Key specifications include a 2-termination design and tape and reel packaging for automated assembly.

RK73H2BTTD1690F Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RK73H
Canonical Name: KOA Speer Electronics RK73H Series Thick Film Chip Resistor, 169 Ohms, 1% Tolerance, 1/4W, 1206 Package
Subcategory: Surface Mount

RK73H2BTTD1690F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73H2BTTD1690F Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73H2BTTD1690F Features

  • 169 Ohm resistance with 1% tolerance.
  • 0.25W power rating in 1206 package.
  • Wide operating temperature range: -55°C to 155°C.
  • AEC-Q200 qualified and moisture resistant.
  • Thick film composition for reliability.

RK73H2BTTD1690F Applications

  • Suitable for automotive applications.
  • Used in general electronic circuits.
  • Ideal for surface mount designs.
  • Requires automated assembly.

RK73H2BTTD1690F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73H2BTTD1690F?

The resistance value is 169 ohms.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of the RK73H2BTTD1690F?

The power rating is 0.25W, 1/4W.

What is the operating temperature range for this resistor?

-55°C to 155°C.

What package size does this resistor use?

It uses the 1206 (3216 Metric) package.

Is this resistor moisture resistant?

Yes, it is moisture resistant.

Does this resistor meet automotive standards?

Yes, it complies with AEC-Q200 standards.
