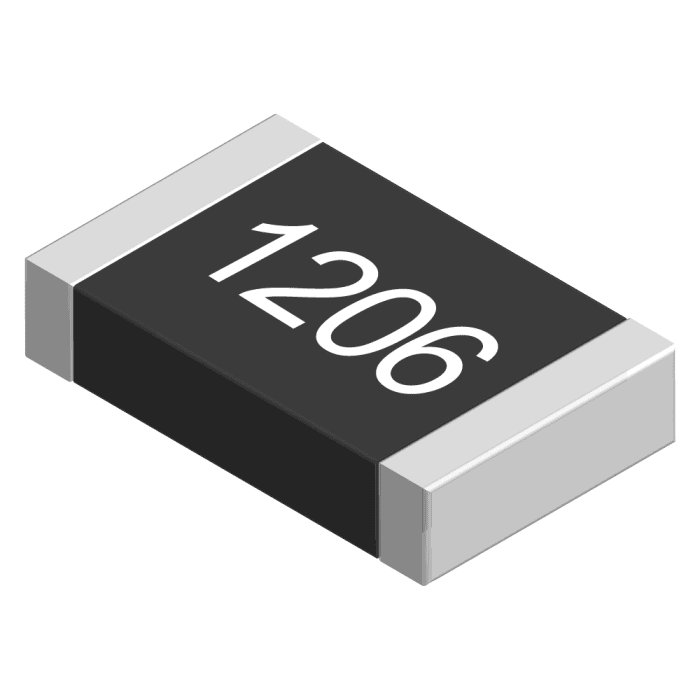

RK73H2BTTD1003F This KOA Speer Electronics RK73H2BTTD1003F is a thick film surface mount resistor with a resistance of 100 kΩ and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
Mfr Part #:

RK73H2BTTD1003F

Available from 5 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
This KOA Speer Electronics RK73H2BTTD1003F is a thick film surface mount resistor with a resistance of 100 kΩ and a tolerance of ±1%. It has a power rating of 0.25W and comes in a 1206 package.
✓ Total Stock: 24,056 pcs
$ Price Range: $0.02

RK73H2BTTD1003F Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73H2BTTD1003F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Termination Style
Tolerance
Voltage
Width
View Similar Products (0)

RK73H2BTTD1003F Description

Short technical summary and product information.

The KOA Speer Electronics RK73H2BTTD1003F is a high-reliability thick film chip resistor designed for surface mount applications. It offers a precise resistance value of 100 kΩ with a tight tolerance of ±1%, making it suitable for various electronic circuits.



This resistor is rated for 0.25W of power and operates within a wide temperature range of -55°C to 155°C. The component features a 1206 package size, with dimensions of 3.20mm in length and 1.60mm in width, and a height of 0.70mm. Its thick film construction provides excellent weather and heat resistance.



Designed for demanding applications, this resistor is AEC-Q200 qualified and suitable for automotive use. It is compatible with both flow and reflow soldering processes and can be used with automatic placement machines. The RK73H series is known for its compact size, light weight, stability, and reliability.

RK73H2BTTD1003F Quick Information

Product Type: Thick Film Surface Mount Resistor
Series: RK73H
Canonical Name: KOA Speer Electronics RK73H Series 100 kΩ ±1% 0.25W Thick Film Surface Mount Resistor, 1206 Package
Subcategory: Surface Mount Resistors

RK73H2BTTD1003F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73H2BTTD1003F Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73H2BTTD1003F Features

  • Offers 100 kΩ resistance with ±1% tolerance.
  • Rated for 0.25W power dissipation.
  • Operates across a wide -55°C to 155°C range.
  • Features a compact 1206 surface mount package.
  • AEC-Q200 qualified for automotive applications.

RK73H2BTTD1003F Applications

  • Suitable for automotive circuits.
  • Ideal for general purpose electronics.
  • Used in high-reliability designs.
  • Applicable in temperature-sensitive systems.

RK73H2BTTD1003F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73H2BTTD1003F resistor?

The resistance value is 100 kΩ.

What is the tolerance of the RK73H2BTTD1003F resistor?

The tolerance is ±1%.

What is the power rating of the RK73H2BTTD1003F resistor?

The power rating is 0.25W.

What is the operating temperature range for the RK73H2BTTD1003F resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RK73H2BTTD1003F resistor?

The package size is 1206.

Is the RK73H2BTTD1003F resistor AEC-Q200 qualified?

Yes, the RK73H2BTTD1003F resistor is AEC-Q200 qualified.
