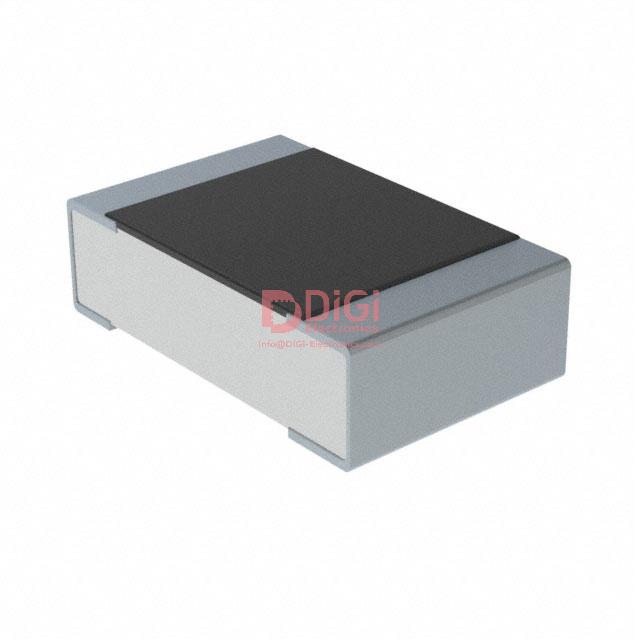

RK73H1JTTD2R15F The KOA Speer Electronics RK73H1JTTD2R15F is a thick film chip resistor with a resistance of 2.15 Ohms and a tolerance of 1%. It is rated for 1/8W power and comes in an 0603 package.
Mfr Part #:

RK73H1JTTD2R15F

Available from 1 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics RK73H1JTTD2R15F is a thick film chip resistor with a resistance of 2.15 Ohms and a tolerance of 1%. It is rated for 1/8W power and comes in an 0603 package.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.02

RK73H1JTTD2R15F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73H1JTTD2R15F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RK73H1JTTD2R15F Description

Short technical summary and product information.

This KOA Speer Electronics RK73H1JTTD2R15F is a surface mount thick film chip resistor designed for various electronic applications. It offers a precise resistance value of 2.15 Ohms with a tight tolerance of ±1%, ensuring reliable performance in sensitive circuits.



The resistor is rated for a power of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. Its temperature coefficient is ±200ppm/°C, making it suitable for applications where temperature stability is important.



With its compact 0603 (1608 Metric) package size, measuring 1.60mm in length, 0.80mm in width, and 0.55mm in height, this component is ideal for space-constrained designs. The RK73H series is also noted for its automotive qualification (AEC-Q200) and moisture resistance, making it a robust choice for demanding environments.

RK73H1JTTD2R15F Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RK73H
Canonical Name: KOA Speer Electronics RK73H Series Thick Film Chip Resistor, 2.15 Ohm, 1% Tolerance, 1/8W, 0603 Package
Subcategory: Surface Mount

RK73H1JTTD2R15F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73H1JTTD2R15F Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73H1JTTD2R15F Features

  • 2.15 Ohm resistance with 1% tolerance.
  • Rated for 1/8W power dissipation.
  • Operates from -55°C to 155°C.
  • Compact 0603 package size.
  • Automotive AEC-Q200 qualified.

RK73H1JTTD2R15F Applications

  • Suitable for general purpose circuits.
  • Ideal for automotive applications.
  • Used in space-constrained designs.
  • Reliable in varying temperature conditions.

RK73H1JTTD2R15F FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73H1JTTD2R15F?

The resistance value is 2.15 Ohms.

What is the tolerance of the RK73H1JTTD2R15F resistor?

The tolerance is ±1%.

What is the power rating for the RK73H1JTTD2R15F?

The power rating is 0.125W, or 1/8W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the RK73H1JTTD2R15F available in?

It is available in the 0603 (1608 Metric) package size.

Is this resistor suitable for automotive applications?

Yes, it features Automotive AEC-Q200 qualification and is moisture resistant.
