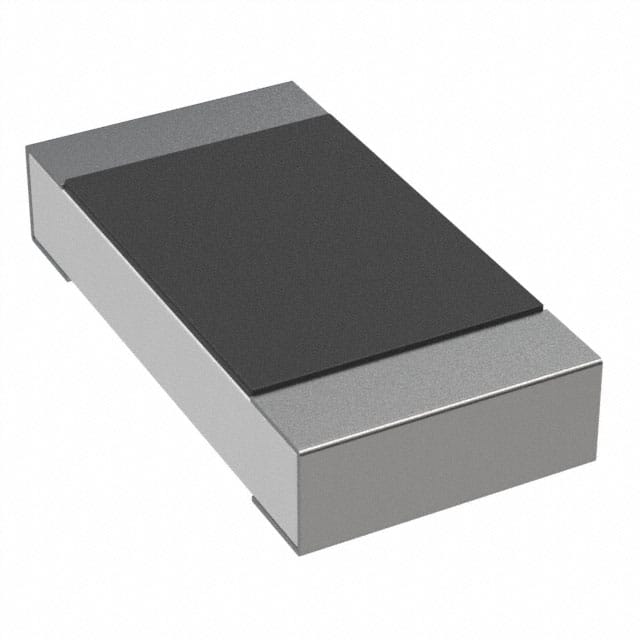

RK73B2BTTD103J This KOA Speer Electronics RK73B2BTTD103J is a 10 kΩ thick film chip resistor with a ±5% tolerance and a 1/4W power rating. It features a 1206 package size and is AEC-Q200 qualified.
Mfr Part #:

RK73B2BTTD103J

Available from 3 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
This KOA Speer Electronics RK73B2BTTD103J is a 10 kΩ thick film chip resistor with a ±5% tolerance and a 1/4W power rating. It features a 1206 package size and is AEC-Q200 qualified.
✓ Total Stock: 68,804 pcs
$ Price Range: $0.02

RK73B2BTTD103J Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
35,000 pcs
On Request
35000 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
29,734 pcs
On Request
29734 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
4,070 pcs
On Request
4070 pcs On Request 1 On Request On Request 2014 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73B2BTTD103J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RK73B2BTTD103J Description

Short technical summary and product information.

The KOA Speer Electronics RK73B2BTTD103J is a general-purpose, thick film chip resistor designed for surface mount applications. It offers a nominal resistance of 10 kΩ with a tolerance of ±5% and a power rating of 1/4W. The resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C.



Constructed with a ceramic substrate and metal glaze thick film, this resistor ensures excellent heat and weather resistance. It is suitable for both flow and reflow soldering processes. The component is housed in a standard 1206 (3216 Metric) package, measuring 3.20mm in length and 1.60mm in width, with a height of 0.70mm.



This part is AEC-Q200 tested and features automotive qualifications, making it suitable for demanding applications. Products with lead-free terminations meet EU RoHS requirements. The RK73B series offers a wide lineup of sizes and tolerances for various design needs.

RK73B2BTTD103J Quick Information

Product Type: Chip Resistor
Series: RK73B
Canonical Name: KOA Speer Electronics RK73B Series Thick Film Chip Resistor, 10 kΩ, ±5% Tolerance, 1/4W, 1206 Package
Subcategory: Surface Mount

RK73B2BTTD103J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73B2BTTD103J Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73B2BTTD103J Features

  • 10 kΩ resistance with ±5% tolerance.
  • 1/4W power rating suitable for general use.
  • 1206 package size for surface mounting.
  • Wide operating temperature range of -55°C to 155°C.
  • AEC-Q200 qualified for automotive applications.

RK73B2BTTD103J Applications

  • Suitable for flow and reflow soldering.
  • General purpose thick film resistor.
  • Automotive and industrial applications.
  • Reliable performance in harsh environments.

RK73B2BTTD103J FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73B2BTTD103J resistor?

The resistance value is 10 kΩ.

What is the tolerance of the RK73B2BTTD103J resistor?

The tolerance is ±5%.

What is the power rating of the RK73B2BTTD103J resistor?

The power rating is 0.25W or 1/4W.

What is the operating temperature range for the RK73B2BTTD103J resistor?

The operating temperature range is -55°C to 155°C.

What is the package type for the RK73B2BTTD103J resistor?

The package type is 1206 (3216 Metric).

Is the RK73B2BTTD103J resistor AEC-Q200 qualified?

Yes, the RK73B2BTTD103J resistor is AEC-Q200 tested and qualified.
