| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39,057 pcs
$0.01
|
39057 pcs |
$0.01
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

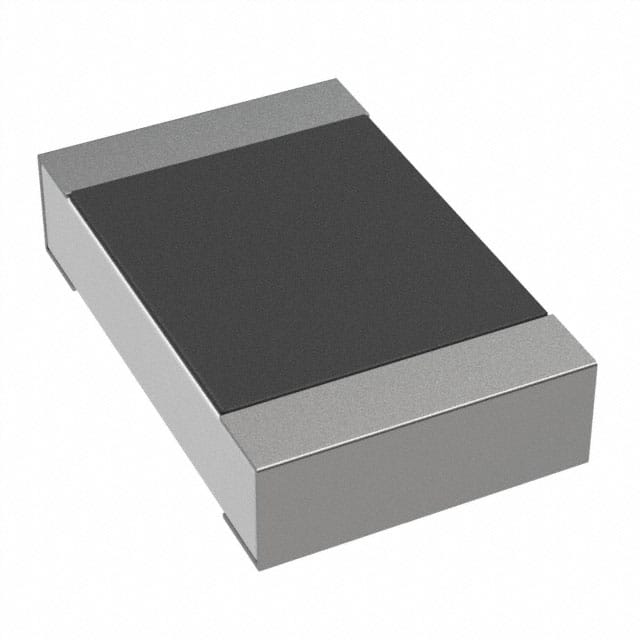

The RK73B2ATTD201J from KOA Speer Electronics is a general-purpose thick film chip resistor designed for surface mount applications. It features a resistance value of 200 Ohms with a tight tolerance of ±5% and a power rating of 0.25W (1/4W).
This resistor is constructed with a metal glaze thick film on a ceramic substrate, ensuring excellent heat and weather resistance. It is suitable for both flow and reflow soldering processes. The component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C.
The package size is 0805 (2012 Metric), with dimensions of 2.00mm in length, 1.25mm in width, and 0.60mm in height. The RK73B series is AEC-Q200 tested, making it suitable for automotive applications. Products with lead-free terminations meet EU RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 200 Ohms.
The tolerance is ±5%.
The power rating is 0.25W or 1/4W.
The operating temperature range is -55°C to 155°C.
The dimensions are 2.00mm in length, 1.25mm in width, and 0.60mm in height.
Yes, this resistor is AEC-Q200 tested.
The package type is 0805 (2012 Metric).
