| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18,960 pcs
$0.01
|
18960 pcs |
$0.01
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

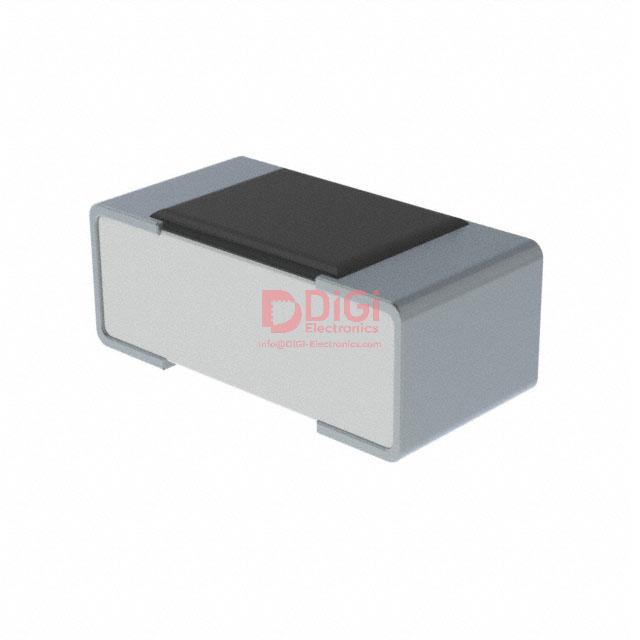

This KOA Speer Electronics RK73B1ETTP821J is a general-purpose, thick film chip resistor designed for surface mount applications. It offers a resistance value of 820 Ohms with a tight tolerance of ±5% and a power rating of 0.1W (1/10W).
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. It is constructed with a ceramic substrate and features metal glaze thick film for excellent heat and weather resistance. The component is suitable for both flow and reflow soldering.
Packaged in an 0402 (1005 Metric) case, this resistor meets Automotive AEC-Q200 standards, making it suitable for demanding automotive applications. Products with lead-free terminations meet EU RoHS requirements.
Key specifications include a resistance of 820 Ohms, ±5% tolerance, 0.1W power rating, and an operating temperature range of -55°C to 155°C. The compact 0402 package size (1.00mm x 0.50mm) is ideal for high-density circuit designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RK73B1ETTP821J resistor has a resistance value of 820 Ohms.
The tolerance of the RK73B1ETTP821J chip resistor is ±5%.
The power rating for the RK73B1ETTP821J resistor is 0.1W, or 1/10W.
The RK73B1ETTP821J operates within a temperature range of -55°C to 155°C.
The RK73B1ETTP821J resistor is available in the 0402 (1005 Metric) package size.
Yes, the RK73B1ETTP821J is AEC-Q200 tested, making it suitable for automotive applications.
