| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,640 pcs
|
5640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

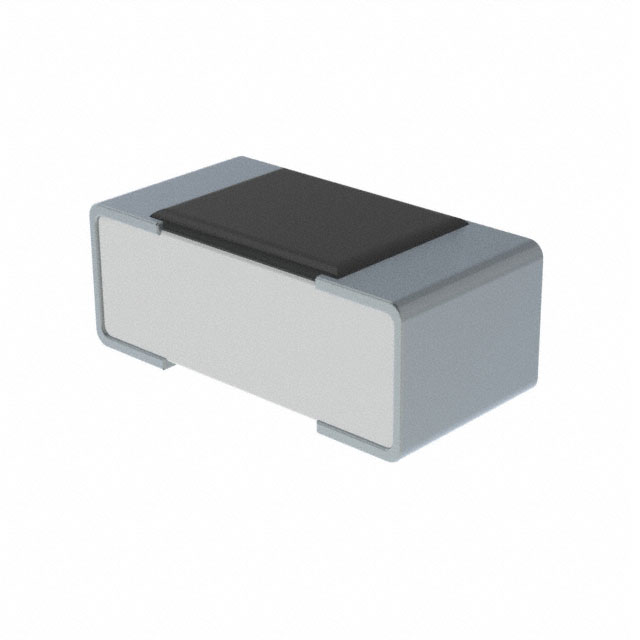

The KOA Speer Electronics RK73B1ETTP473J is a surface-mount chip resistor from the RK73B series. It features a resistance value of 47 kΩ with a tight tolerance of ±5% and a power rating of 0.1W (1/10W). This resistor is constructed using thick film technology and is designed for general-purpose applications.
Designed for reliability, the RK73B1ETTP473J operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±200ppm/°C. Its compact 0402 (1005 Metric) package dimensions are 1.00mm in length and 0.50mm in width, with a height of 0.40mm. The resistor has 2 terminations and is suitable for both flow and reflow soldering.
This component is AEC-Q200 tested, indicating its suitability for automotive applications. It meets RoHS3 compliance standards. The thick film construction ensures excellent heat and weather resistance, making it a robust choice for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 47 kΩ.
The tolerance is ±5%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±200ppm/°C.
The dimensions are 1.00mm in length, 0.50mm in width, and 0.40mm in height.
Yes, this resistor is AEC-Q200 tested.
