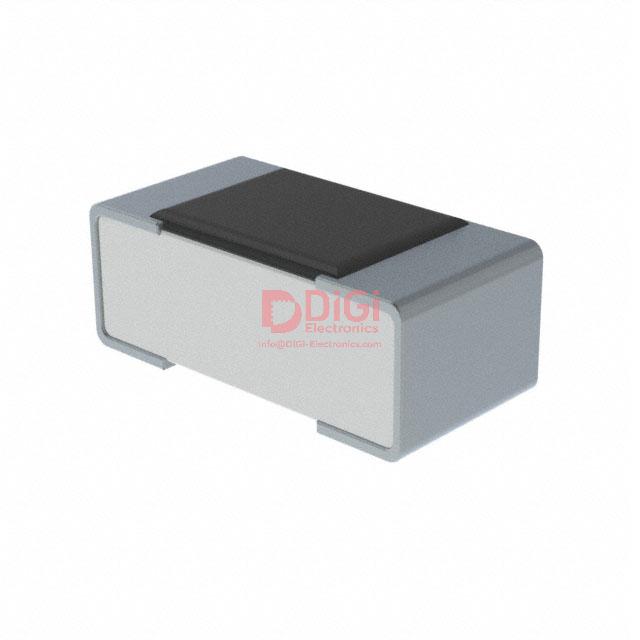

RK73B1ETTP220J The KOA Speer Electronics RK73B1ETTP220J is a thick film chip resistor with a resistance of 22 Ohms and a tolerance of ±5%. It is designed for surface mount applications in an 0402 package.
Mfr Part #:

RK73B1ETTP220J

Available from 2 distributors
Mfr Name: KOA Speer Electronics
KOA Speer Electronics
The KOA Speer Electronics RK73B1ETTP220J is a thick film chip resistor with a resistance of 22 Ohms and a tolerance of ±5%. It is designed for surface mount applications in an 0402 package.
✓ Total Stock: 69,937 pcs
$ Price Range: $0.02

RK73B1ETTP220J Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
49,937 pcs
On Request
49937 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RK73B1ETTP220J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

RK73B1ETTP220J Description

Short technical summary and product information.

The RK73B1ETTP220J is a general-purpose, thick film chip resistor manufactured by KOA Speer Electronics. It features a resistance value of 22 Ohms with a tolerance of ±5% and a power rating of 0.1W (1/10W). This component is designed for surface mount applications and comes in an 0402 (1005 Metric) package.



With an operating temperature range of -55°C to 155°C and a temperature coefficient of ±200ppm/°C, the RK73B1ETTP220J is suitable for various environmental conditions. It is also AEC-Q200 tested, indicating its suitability for automotive applications. The resistor's construction utilizes a metal glaze thick film on a ceramic substrate, ensuring excellent heat and weather resistance. It is compatible with both flow and reflow soldering processes.



The dimensions of the 0402 package are approximately 1.00mm in length and 0.50mm in width, with a height of 0.40mm. The part is supplied on tape and reel for automated assembly. Products with lead-free terminations meet EU RoHS requirements.

RK73B1ETTP220J Quick Information

Product Type: Thick Film Chip Resistor
Series: RK73B
Canonical Name: KOA Speer Electronics RK73B1ETTP220J Thick Film Chip Resistor
Subcategory: Surface Mount

RK73B1ETTP220J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RK73B1ETTP220J Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

RK73B1ETTP220J Features

  • Thick film construction for reliability.
  • 22 Ohms resistance with ±5% tolerance.
  • 0.1W power rating in 0402 package.
  • AEC-Q200 tested for automotive use.
  • Wide operating temperature range.

RK73B1ETTP220J Applications

  • Suitable for automotive applications.
  • General purpose surface mount circuits.
  • Used in flow and reflow soldering.
  • Designed for harsh environmental conditions.

RK73B1ETTP220J FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the RK73B1ETTP220J resistor?

The resistance value is 22 Ohms.

What is the tolerance of the RK73B1ETTP220J resistor?

The tolerance is ±5%.

What is the power rating of the RK73B1ETTP220J resistor?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for the RK73B1ETTP220J resistor?

The operating temperature range is -55°C to 155°C.

What is the package size of the RK73B1ETTP220J resistor?

The package size is 0402 (1005 Metric).

Is the RK73B1ETTP220J resistor AEC-Q200 tested?

Yes, the RK73B1ETTP220J resistor is AEC-Q200 tested.
