| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,160 pcs
|
8160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

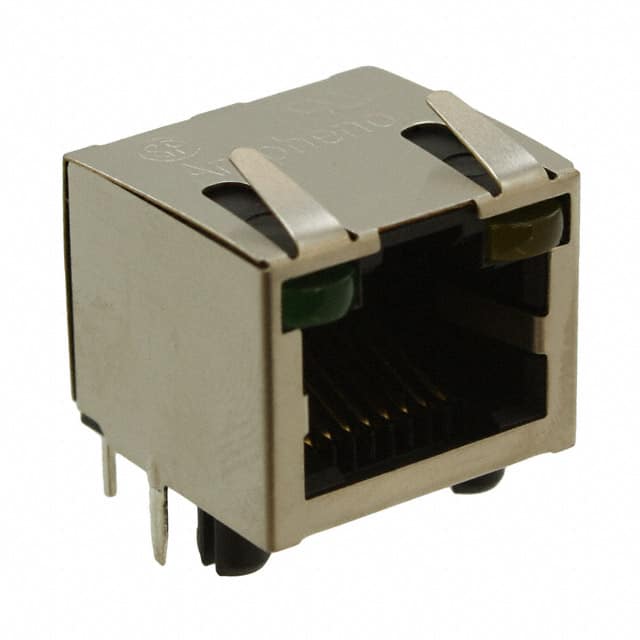

The Amphenol ICC RJHSE-5384 is a single-port modular jack designed for 8p8c (RJ45) Ethernet connectors. It features a right-angle (90°) orientation and through-hole solder termination for secure PCB mounting. The jack is shielded with an integrated EMI finger to reduce electromagnetic interference, and includes a board lock feature for mechanical retention during soldering.
Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections and corrosion resistance. The jack has a single row of contacts and an upward tab direction. It is equipped with a green and yellow LED for status indication.
This component is suitable for networking equipment, data communication devices, and other applications requiring a shielded RJ45 interface. The through-hole design provides robust mechanical attachment to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.95 | $1.95 |
| 10+ | $1.72 | $1.72 |
| 25+ | $1.56 | $1.56 |
| 250+ | $1.43 | $1.43 |
| 500+ | $1.37 | $1.37 |
| 1,000+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a modular jack (RJ45) with 8 positions and 8 contacts (8p8c).
It has 1 port.
Through hole mounting with right angle (90°) orientation.
Yes, it is shielded with an EMI finger.
Gold finish on phosphor bronze contacts.
Yes, it has a green and yellow LED.
The tab direction is up.
