| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
224 pcs
|
224 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

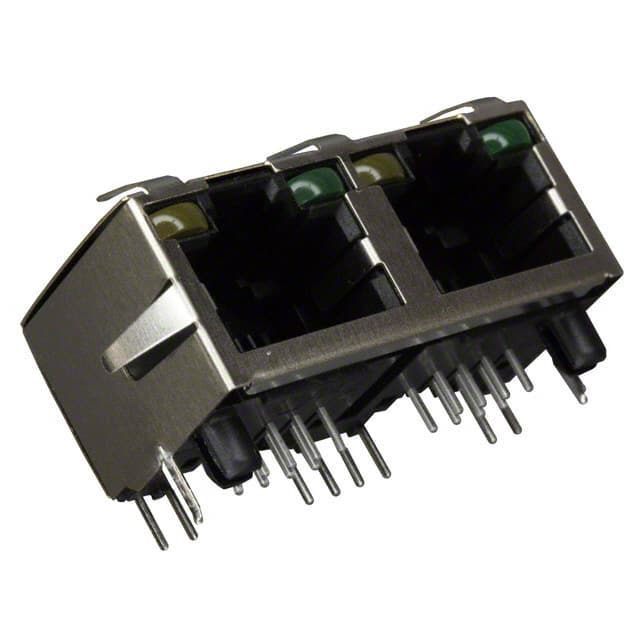

The Amphenol ICC RJHSE-5381-02 is a modular connector jack designed for Ethernet and networking applications. It features 2 ports with 8P8C (RJ45) contact arrangement in a single row. The connector is through hole mounted and terminated via solder, with a 90° right angle orientation for space-constrained PCB layouts.
Shielding is provided with an EMI finger for enhanced electromagnetic interference protection. The jack includes a board lock feature for secure attachment to the PCB during soldering. Contacts are made of phosphor bronze with a gold finish for reliable signal integrity and corrosion resistance. The tab direction is up, and the connector includes yellow-green LED indicators for port status.
This component is suitable for use in networking equipment, routers, switches, and other data communication devices requiring a compact, shielded RJ45 interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.69 | $4.69 |
| 10+ | $3.98 | $3.98 |
| 25+ | $3.36 | $3.36 |
| 100+ | $3.20 | $3.20 |
| 250+ | $2.87 | $2.87 |
| 448+ | $2.86 | $2.86 |
| 896+ | $2.80 | $2.80 |
| 2,688+ | $2.77 | $2.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a jack (modular jack).
It has 8 positions and 8 contacts (8P8C), which is standard for RJ45 Ethernet.
It has 2 ports.
The mounting type is through hole.
Yes, it is shielded and includes an EMI finger for electromagnetic interference protection.
