| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8,941 pcs
$0.42
|
8941 pcs |
$0.42
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

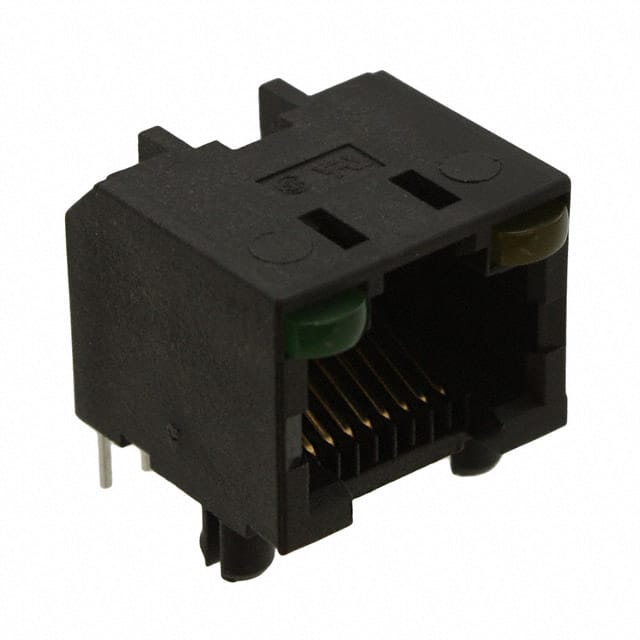

The Amphenol ICC RJHSE-5084 is a single-port modular jack with 8P8C (RJ45, Ethernet) positions, designed for through-hole PCB mounting. It features right-angle (90°) orientation with tab direction up, and solder termination. The connector is unshielded, making it suitable for applications where electromagnetic interference (EMI) protection is not critical.
Constructed with phosphor bronze contacts that have a gold finish, the RJHSE-5084 provides reliable connectivity over repeated mating cycles. It includes integrated green and yellow LEDs for status indication, commonly used for link and activity signals in networking equipment. A board lock feature enhances mechanical retention on the PCB.
This jack is intended for use in Ethernet and data communication systems where an unshielded, cost-effective interconnect solution is required. The through-hole mounting provides robust attachment compared to surface-mount alternatives. Key mechanical specifications include a single row of contacts and a right-angle orientation to save board space when used edge-mounted.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 10+ | $1.28 | $1.28 |
| 25+ | $1.14 | $1.14 |
| 100+ | $1.08 | $1.08 |
| 250+ | $0.98 | $0.98 |
| 500+ | $0.96 | $0.96 |
| 1,000+ | $0.92 | $0.92 |
| 2,916+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RJHSE-5084 has 8P8C positions (RJ45, Ethernet).
Through hole mounting.
No, it is unshielded.
90° Angle (Right) orientation.
Yes, it has green and yellow LEDs.
Phosphor bronze contacts with gold finish.
Yes, it includes a board lock feature.
