| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Operating Temperature Range | |
| Ratings | |
| SVHC Present | |
| Shell Material, Finish | |
| Shielding | |
| Tape & Reel | |
| Type |

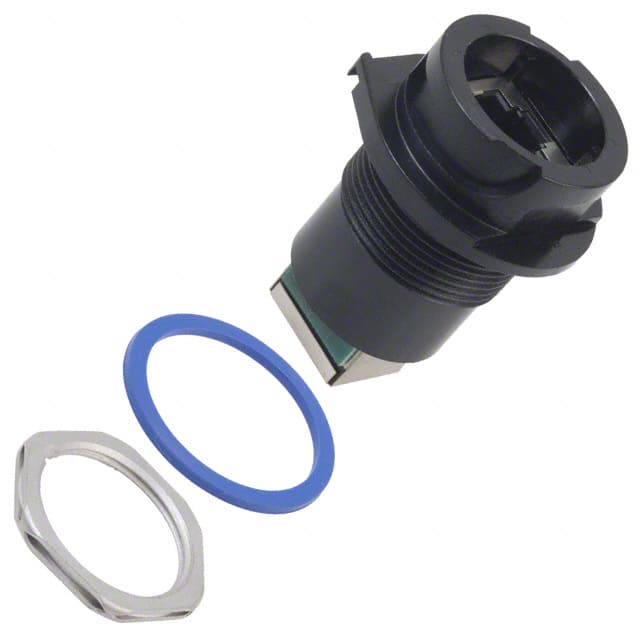

The RJFRB71 is a modular coupler from Amphenol Socapex's RJF Field series, designed for Ethernet connections in harsh environments. It converts a standard RJ45 jack to another RJ45 jack, allowing for easy extension or connection of cables.
This coupler is rated for Cat5e performance, supporting 10 BaseT, 100 BaseTX, and 1000 BaseT networks. It offers IP67 protection against dust and water immersion, and is unshielded. The operating temperature range is -40°C to +85°C.
The coupler features a panel mount with a rear side nut for secure installation. The shell is made of plastic with UL94 V0 flammability rating. The coupling mechanism is a circular reverse bayonet, providing a quick and reliable connection. It is designed for industrial environments such as robotics, process control, and telecom equipment.
The RJFRB71 has a minimum of 500 mating cycles and a retention force of 70 N for the RJ45 cordset. It also withstands salt spray exposure for 1000 hours. The product is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $28.96 | $28.96 |
| 10+ | $24.61 | $24.61 |
| 20+ | $23.07 | $23.07 |
| 50+ | $21.98 | $21.98 |
| 100+ | $20.92 | $20.92 |
| 200+ | $19.61 | $19.61 |
| 500+ | $18.68 | $18.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with bulkhead capability, secured with a rear side nut.
IP67 - dust tight and waterproof.
Cat5e, supporting 10 BaseT, 100 BaseTX, and 1000 BaseT networks.
-40°C to +85°C.
Minimum 500 cycles.
Plastic shell with UL94 V0 flammability rating.
No, it is unshielded.
