| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mating Cycles | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel |

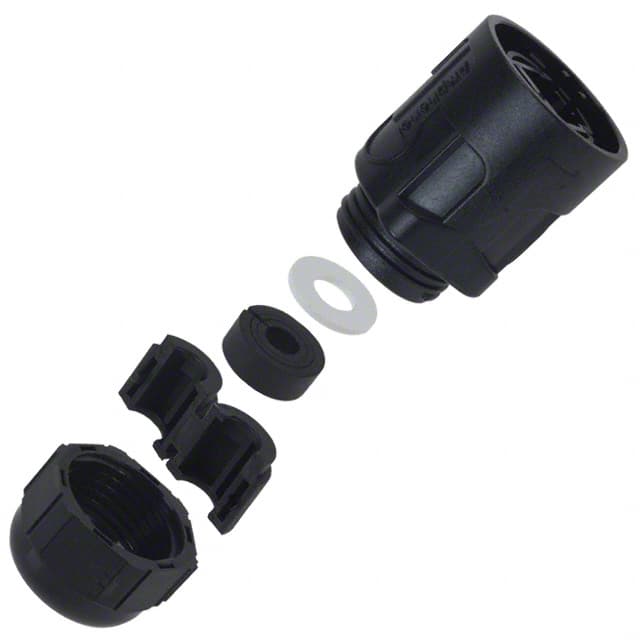

The RJFRB6 is a modular connector plug housing from Amphenol Socapex, designed for prewired RJ45 cordsets in harsh industrial environments. It features a reverse bayonet locking mechanism for quick and secure mating, and is rated IP67 for dust tight and waterproof protection.
This free hanging (in-line) housing accepts standard RJ45 cordsets without requiring field cabling or tools, thanks to the patented RJStop system. It supports Cat 5e and Cat 6 data transmission standards, suitable for 10 BaseT, 100 BaseTX, and 1000 BaseT networks.
Mechanically, the housing is shock resistant, vibration resistant, and toolless. It offers a minimum of 500 mating cycles and a retention force of 70 N on the RJ45 cordset. The operating temperature range is -40°C to +85°C. The housing material is rated UL94 V0 for flammability and can withstand salt spray for over 1000 hours and thermal shock of 5 cycles between -40°C and +100°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.99 | $18.99 |
| 10+ | $16.14 | $16.14 |
| 20+ | $15.12 | $15.12 |
| 50+ | $14.40 | $14.40 |
| 100+ | $13.72 | $13.72 |
| 200+ | $12.86 | $12.86 |
| 500+ | $12.25 | $12.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
IP67 - dust tight and waterproof.
Reverse bayonet lock.
Free hanging (in-line).
-40°C to +85°C.
500 minimum cycles.
UL94 V0.
Cat 5e and Cat 6.
