| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

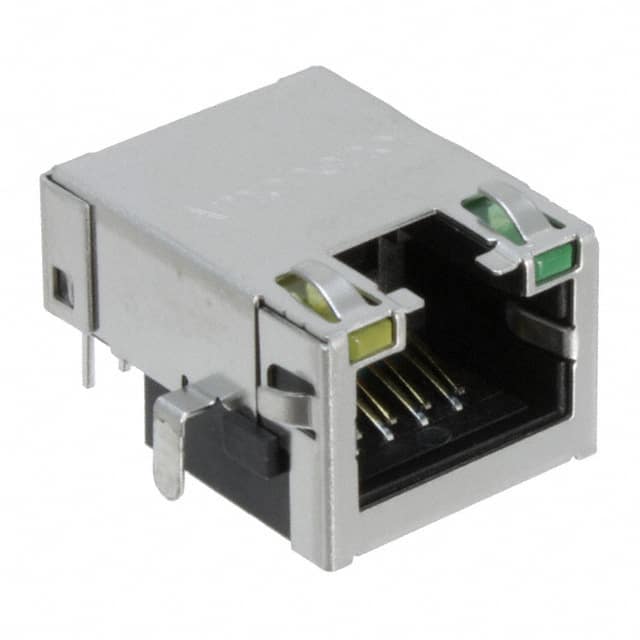

This Amphenol ICC RJE71-188-1411 is a modular connector jack designed for robust connectivity. It features an 8 position, 8 contact (8p8c) configuration, commonly known as RJ45 for Ethernet applications.
The connector is shielded with an EMI finger for enhanced signal integrity and noise reduction. It is rated for Cat6 performance, suitable for high-speed data transmission.
Mechanical specifications include a right-angle orientation for 90° board mounting, and through-hole termination for secure soldering. The contact material is phosphor bronze with a gold finish for reliable conductivity. The mounting type supports board edge and panel mount options.
Additional features include a single port and an integrated LED indicator with yellow-green color. This connector is designed for applications requiring reliable Ethernet connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 8 positions and 8 contacts (8p8c).
The connector is rated for Cat6 performance.
It features board edge, panel mount, and through-hole mounting types with a 90° angle orientation.
The connector uses solder termination.
Yes, it is shielded and includes an EMI finger.
