| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,089 pcs
|
20089 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| SVHC Present | |
| Storage Temperature |

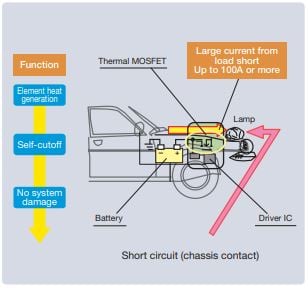

The Renesas RJE0618JSP is a P Channel Thermal FET with a drain-source voltage rating of -60V and a continuous drain current of -10A. This device is designed for power switching applications and incorporates an over-temperature shut-down capability that senses the junction temperature. When the junction temperature becomes excessively high due to over power consumption or over current, the circuit operates to shut down the gate voltage.
Key features include a built-in over-temperature shut-down circuit, high endurance against short circuits, and a latch-type shut down operation requiring 0 voltage recovery. It also has a built-in current limitation circuit, making it suitable for applications requiring robust protection. The FET is compliant with AEC-Q101 standards and comes in a compact SOP-8 package, facilitating high-density mounting.
Electrical characteristics include a drain-source breakdown voltage of -60V and a gate-source breakdown voltage of -16V. The typical shut-down temperature is 175°C. The device is designed for automotive applications and offers high endurance capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-60V
-10A
SOP-8
175°C
Yes, it has a built-in over-temperature shut-down circuit.
RoHS3 Compliant
