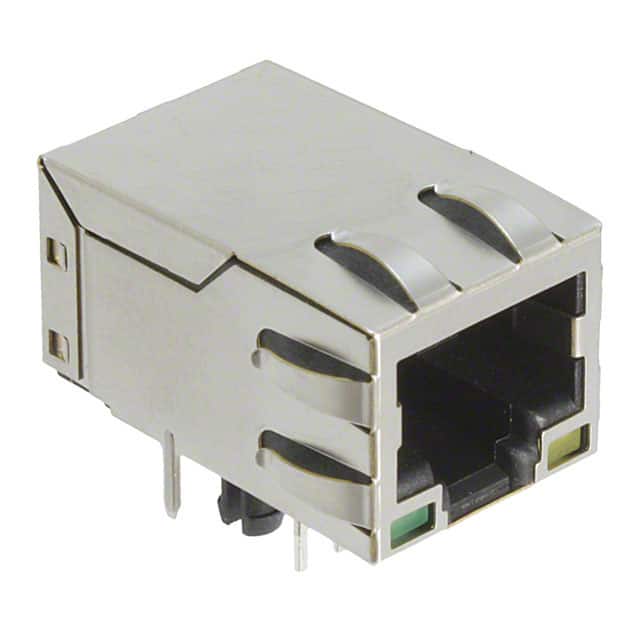

RJ45SJS11AC010X The Conec RJ45SJS11AC010X is a single-port modular connector jack designed for surface mounting. It features a shielded design with EMI finger and gold contact finish.
Mfr Part #:

RJ45SJS11AC010X

Available from 1 distributors
Mfr Name: Conec
Conec
The Conec RJ45SJS11AC010X is a single-port modular connector jack designed for surface mounting. It features a shielded design with EMI finger and gold contact finish.
✓ Total Stock: 78 pcs
$ Price Range: $1.00

RJ45SJS11AC010X Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
78 pcs
On Request
78 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RJ45SJS11AC010X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
LED Color
Mounting Type
Number of Cores per Jack
Number of Ports
Number of Rows
Operating Temperature
Orientation
Shielding
Tab Direction
Termination
View Similar Products (0)

RJ45SJS11AC010X Description

Short technical summary and product information.

This Conec RJ45SJS11AC010X is a modular connector jack with a single port, designed for surface mount applications. It offers a 90° angle orientation and a down tab direction.



The connector is shielded with an EMI finger and features a board lock for secure mounting. The contact material is copper alloy with a gold finish, ensuring reliable connections. The operating temperature range is -40°C to 85°C.



Key specifications include 1 port, 1 row, and 5 cores per jack. The termination method is solder. The height above the board is 13.31mm. It also includes LED indicators with green and yellow colors.



This component is suitable for various electronic applications requiring robust and shielded RJ45 connectivity. Its surface mount design facilitates integration into PCBs.

RJ45SJS11AC010X Quick Information

Product Type: Modular Connector Jack
Canonical Name: Conec RJ45SJS11AC010X Modular Connector Jack
Subcategory: Modular Connector Jacks With Magnetics

RJ45SJS11AC010X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RJ45SJS11AC010X Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

RJ45SJS11AC010X Features

  • Single-port RJ45 modular connector jack.
  • Surface mount with 90° angle orientation.
  • Shielded design with EMI finger protection.
  • Gold-plated copper alloy contacts.
  • Board lock feature for secure mounting.

RJ45SJS11AC010X Applications

  • Ideal for PCB integration.
  • Suitable for shielded data connections.
  • Used in electronic device assemblies.
  • Supports right-angle mounting needs.

RJ45SJS11AC010X FAQs

6 frequently asked questions generated from this part’s specifications.
What type of connector is the Conec RJ45SJS11AC010X?

The Conec RJ45SJS11AC010X is an RJ45 modular connector jack.

How many ports does the RJ45SJS11AC010X have?

This connector has 1 port.

What is the mounting type for this RJ45 connector?

The mounting type is surface mount.

What is the operating temperature range for the Conec RJ45SJS11AC010X?

The operating temperature range is -40°C to 85°C.

What is the contact finish on the Conec RJ45SJS11AC010X?

The contact finish is gold.

Is the Conec RJ45SJS11AC010X shielded?

Yes, it is shielded with an EMI finger.
