| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

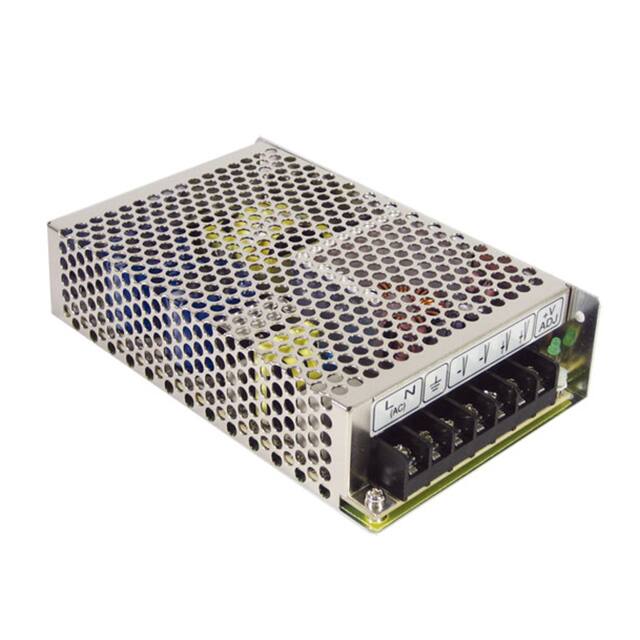

The Mean Well USA RID-85A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides two outputs, with a nominal voltage of 5V on CH1 and 12V on CH2, delivering a combined power of 88W. The rated current for CH1 is 8A and for CH2 is 4A.
This converter features a universal input voltage range of 88 to 264VAC and operates at an efficiency of 80%. It includes adjustable output capabilities and essential protections such as overload and over voltage protection. The operating temperature range is -25°C to +70°C with derating.
With dimensions of 159.0mm x 97.0mm x 38.0mm, the RID-85A is designed for chassis mounting. It meets safety standards including UL62368-1 and TUV EN62368-1, and complies with EMC standards like EN55032 Class B.
The RID-85A has two outputs: 5V on CH1 and 12V on CH2.
The RID-85A has a maximum power output of 88W.
The input voltage range for the RID-85A is 88 to 264VAC.
The operating temperature range is -25°C to +70°C with derating.
The dimensions are 159.0mm x 97.0mm x 38.0mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
