| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

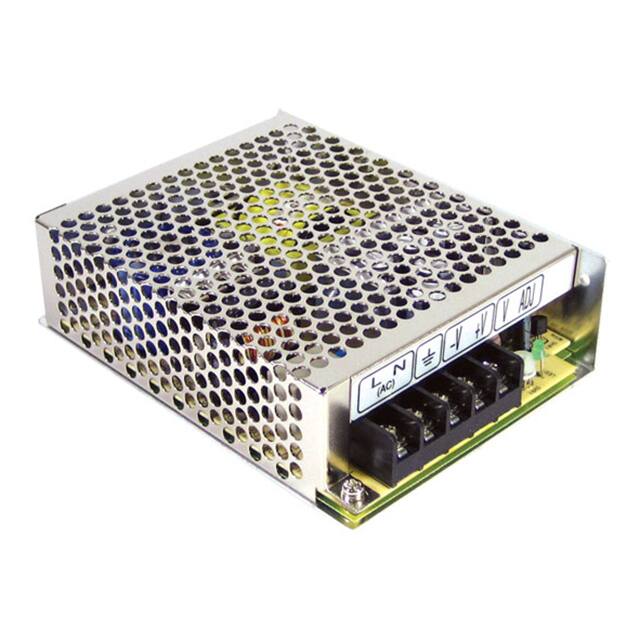

The Mean Well USA RID-65B is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a total of 68W of power across two outputs: 5V and 24V.
Key electrical specifications include a wide input voltage range of 88-264 VAC and a frequency range of 47-63 Hz. The unit offers adjustable output voltage for the 5V channel (4.75-5.5V) and provides a nominal 24V on the second channel. Typical efficiency is rated at 81%, with a typical AC current draw of 1.2A at 230VAC. Protection features include overload protection (110-150% rated output power) and over-voltage protection, both operating in a hiccup mode that recovers automatically.
Mechanically, the RID-65B measures 129.0mm x 98.0mm x 38.0mm and is designed for chassis mounting. It operates within a temperature range of -25°C to 70°C (with derating) and has a typical MTBF of 265.9Khrs at 25°C.
Compliance is met with UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004 safety standards. EMC compliance includes BS EN/EN55032 Class B and BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (heavy industry level).
The input voltage range is 88-264 VAC (also 125-373 VDC).
CH1 provides 5V at 6A, CH2 provides 24V at 3A, total power 68W.
The operating temperature range is -25°C to 70°C with derating.
The package is enclosed chassis mount with dimensions 129.0 x 98.0 x 38.0 mm.
It has overload protection (110-150% rated power) and over voltage protection, both hiccup mode with auto recovery.
It complies with UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004.
