| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

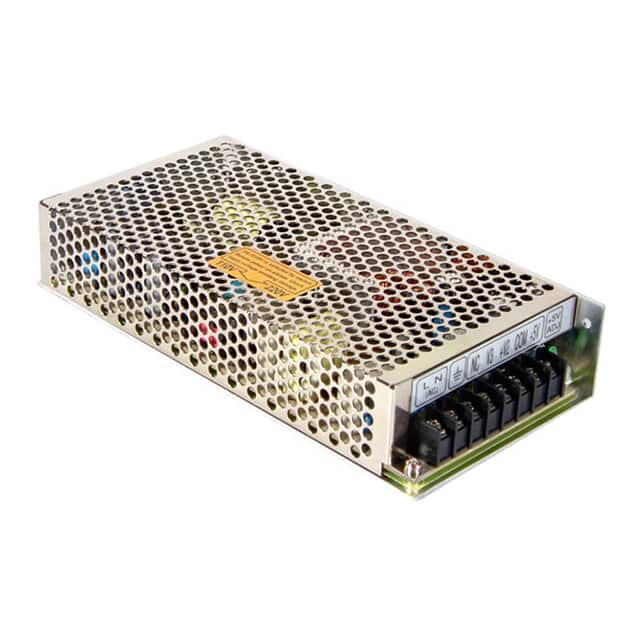

The Mean Well USA RID-125-1205 is a versatile 125W enclosed AC/DC power supply designed for ITE (Commercial) applications. This unit provides dual outputs, with Channel 1 rated at 5V and Channel 2 at 12V, each capable of delivering significant current. The converter offers adjustable output voltage ranges for flexibility in design.
Key electrical specifications include a rated power of 130.9W, with a current range of 0-12A for CH1 and 0-5A for CH2. It operates within a wide input voltage range of 110-150VAC and frequency range of 47-63Hz, boasting efficiencies of up to 85% at full load. Protection features include overload protection ranging from 110-150% of rated output power and over voltage protection with a hiccup mode.
Mechanically, the RID-125-1205 is a chassis mount unit with dimensions of 199.0mm x 98.0mm x 38.0mm. It operates within a temperature range of -25°C to +70°C and has a typical MTBF of 232.4Khrs at 25°C. Safety approvals include CB, CE, cURus, and TUV, complying with standards like UL62368-1 and EN55032 Class B for EMC.
The device provides a 5V output at 7.7A on Channel 1 and a 12V output at 4.6A on Channel 2.
It accepts an AC input voltage range of 110 to 150 VAC at frequencies between 47 and 63 Hz.
The converter comes in an enclosed form factor designed for chassis mounting.
The unit operates reliably within a temperature range of -25°C to +70°C.
It includes overload protection up to 110-150% of rated power and automatic hiccup mode recovery for overvoltage conditions.
