| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| MTBF | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current | |
| Shielding | |
| Tape & Reel | |
| Temperature Range | |
| Width |

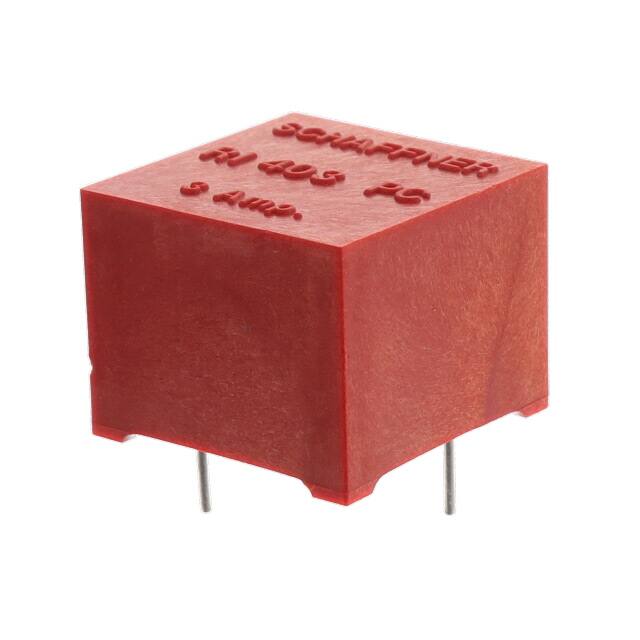

The Schaffner RI403PC is a fixed inductor from the RI series, designed for applications requiring saturating chokes. It offers an inductance value of 1.8 mH and a rated current of 3 A at 40°C, with a DC resistance of 105 mOhm.
This component is suitable for through-hole mounting and comes in a radial, horizontal package with corner terminals. The operating temperature range is specified from -25°C to +110°C, ensuring reliability in various environmental conditions. The inductor is unshielded.
Typical applications for this type of choke include suppressing high interference levels generated by fast switching circuits, DC voltage smoothing, EMC/RFI filters, phase angle control circuits, power supplies, and chargers. The datasheet indicates a high potential test voltage of 2500 V (50 Hz, 2 sec) and an operating voltage of up to 500 VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the RI403PC is 1.8 mH.
The current rating for the RI403PC is 3 A.
The DC resistance of the RI403PC is 105 mOhm.
The operating temperature range for the RI403PC is -25°C to 110°C.
The RI403PC is designed for through-hole mounting.
The operating voltage of the RI403PC is 500 VAC.
